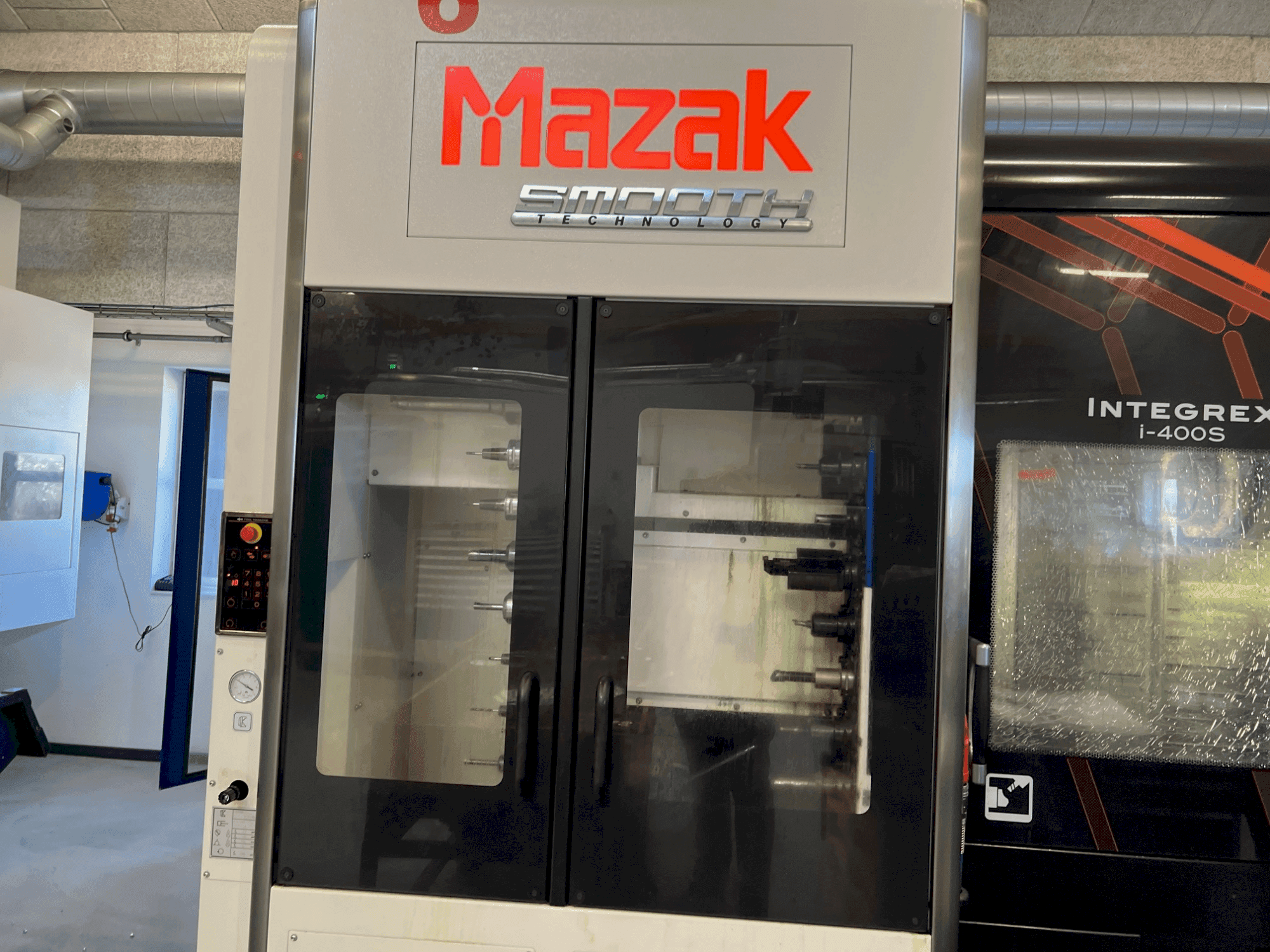

Mazak - Integrex i-400SDK-TUR-MAZ-2017-00001

Additional Equipment

• - Overload detection system / M-coolant (equipped) prep M-thru 7MPa / Mazak Monitoring System B (RMP600) / Mazacheck / C-axis through milling head during rotation / M-code to be switched coolant/air thru / Ethernet operation function / B) Cylindrical & Polar Coordinate (EIA) / 5-Axis Machining Package for SmoothX / Signal Tower (3 colors lights, square) / 2nd Spdl C-Ax. Sync (fact. install only) / Raw/tube connection parts til 1 & 2nd spindle / Mayfran, Consep2000 side / Mayfran, Variflow HP Pack #1 (7 variable flow/pressure stages), 7.5 K/ Mayfran, HP Twin in-line cartridge filter upgrade / Mayfran, coolant gun

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Machine dimensions : height of centers: 1,235 mm / length: 5,200 mm / width: 2,800 mm / height: 2,720 mm / weight: 15,800 kg
  • - Rotating speed maximum: 4,000 min⁻¹/ rotating speed maximum: 3,300 min⁻¹
  • - 72 capto-tool magazine / probing function (override w/o tool) / jaws tool (pos30)
  • - Indo milling / delete standard chuck (2nd spindle) / delete std. Chuck only (1st spindle)
• Qualitative Machine Benefits:
  • - B) milling-spindle synchronous tapping / b) g00 slope constant

Payment Terms

• Payment in advance

• Asset Financing
