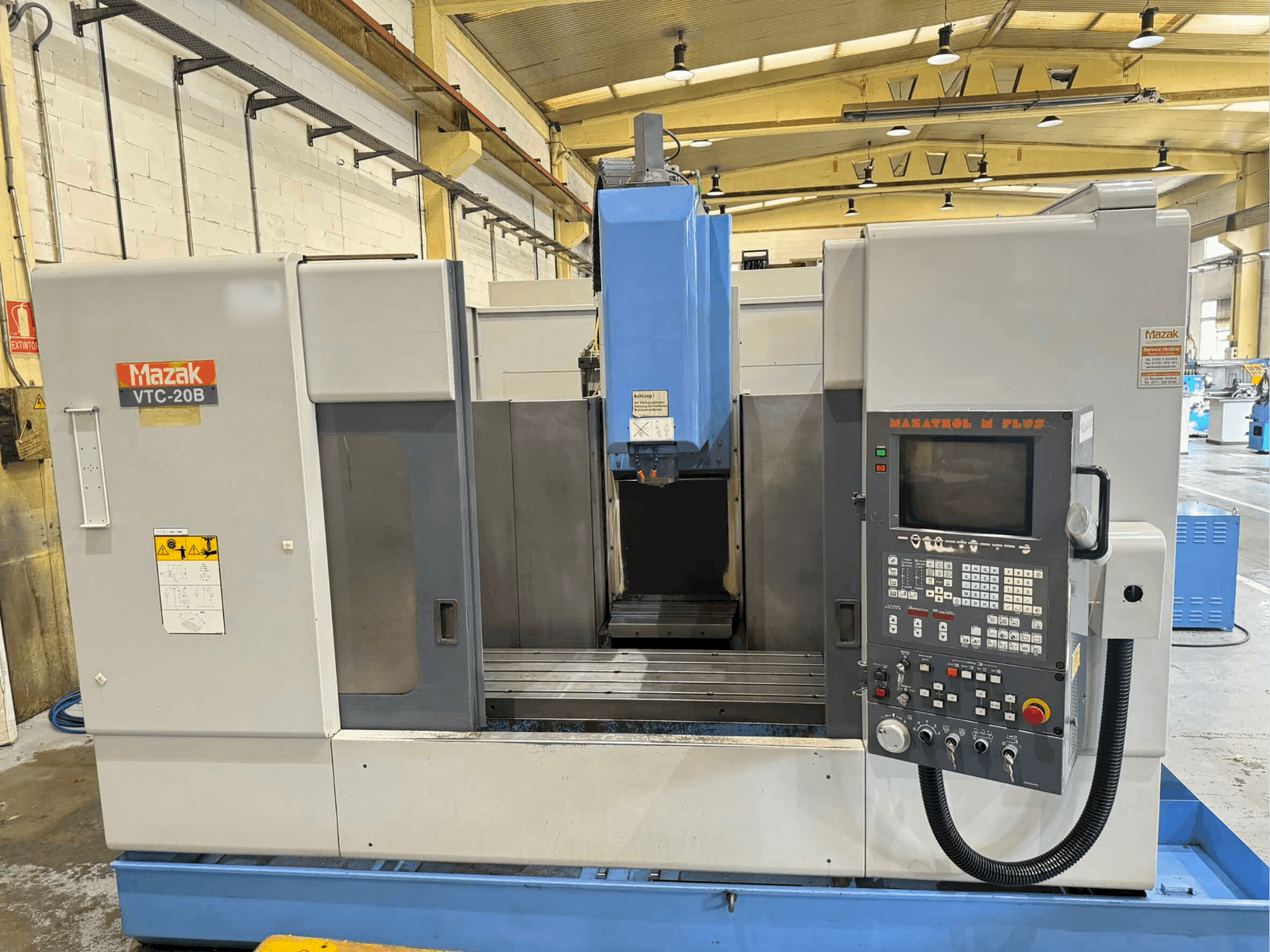

Mazak VTC 20 B

Photo Gallery

Mazak - VTC 20 BES-MIL-MAZ-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VTC 20 B For Sale | gindumac.com

This 3-axis Mazak VTC 20 B was manufactured in 1998. A robust vertical machining center featuring a CNC MAZATROL M PLUS control, it has a table surface of 1,460 x 460 mm and can handle a maximum weight of 800 Kg. It offers rapid traverse rates of 34,000 mm/min and a spindle speed up to 10,000 rpm. Ideal for those looking to buy this Mazak VTC 20 B vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: Mazak
year: 1998
MODEL: VTC 20 B
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC 20 B

General Data

Measurements width: 2990 MM
Measurements depth: 3000 MM
Measurements height: 2700 MM
Machine weight: 5500 KG

Control Unit

Model: MAZATROL M PLUS
Brand: MAZATROL

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kW
Tool taper: SK-40

Movement

X-AXIS Movement: 1,120 mm
X-AXIS Rapid traverse: 34,000 mm/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 34,000 mm/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 34,000 mm/min

Table

Outer length: 1460 mm
Outer width: 460 mm
Min distance between vertical spindle and table: 180 mm
Max distance between vertical spindle and table: 690 mm
Table load: 800 kg

Turret

Number of tool slots: 24

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
