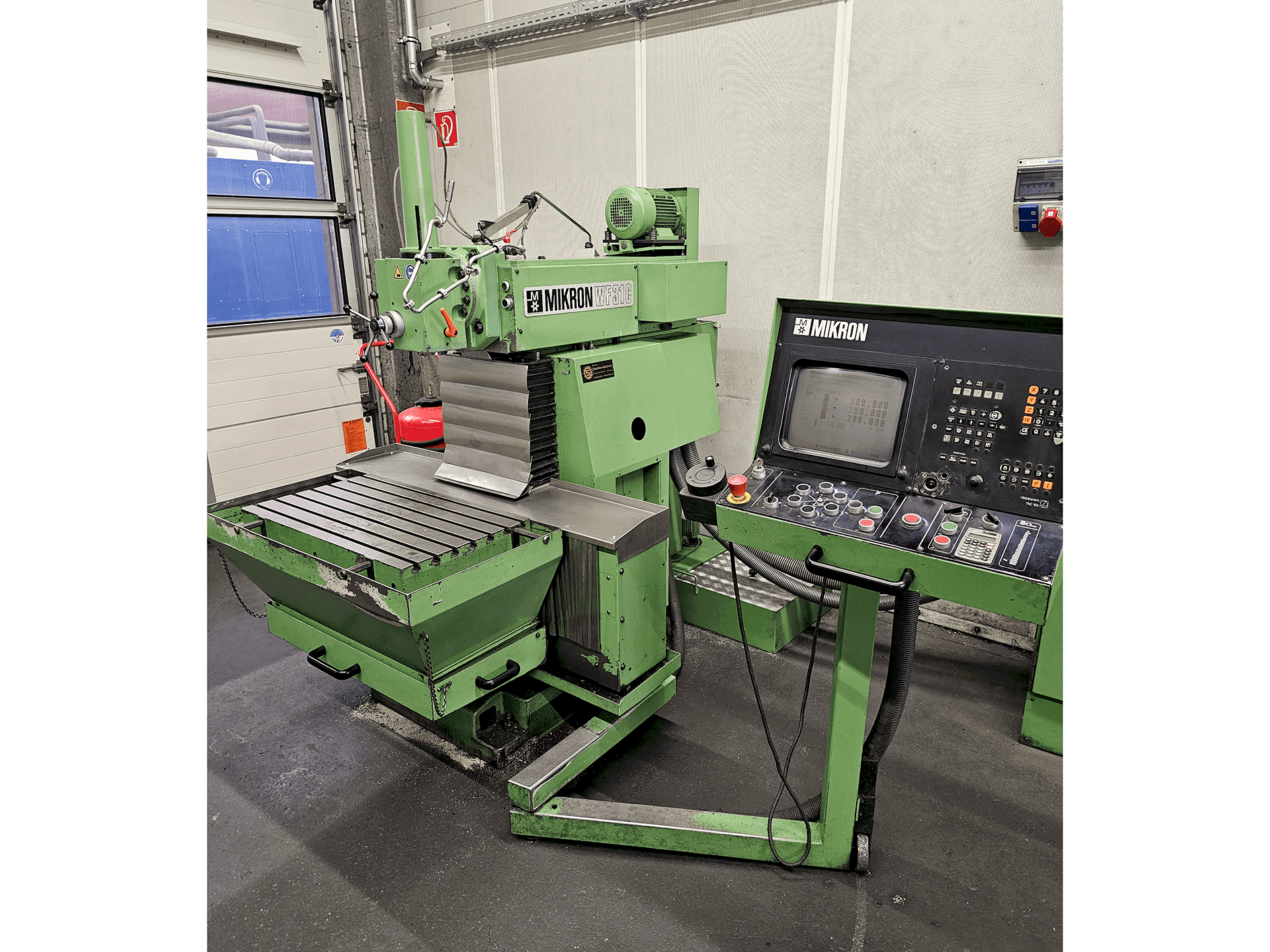

MIKRON - WF-31CDE-MIL-MIK-1986-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Milling spindle drive: 21
  • - Speed range geom. Graduated: 1259
  • - Quill movement vertical: 90 mm
  • - Feed drives
  • - Adjustable: 2 - 3000 mm/min
  • - Rapid traverse speed x-axis and y-axis: 6000 mm/min, rapid traverse speed z axis: 5000 mm/min
  • - Torque feed motor lengthwise and crosswise: 3. 5 nm, torque feed motor vertical: 7 nm
  • - Displacement paths - length - transverse - vertical, longitudinal movement of the clamping table
  • - Max. Vertical installation height between: 450 mm
  • - Vertical milling head and angle table, by moving the table by 1 t-slot: 495 mm
• Qualitative Machine Benefits:
  • - Vertical clamping surface: 300 x 450 mm
  • - Number of threaded holes: 2 x 6
  • - Thread hole distance: 45 mm, thread: m16
  • - Angle table clamping surface: 460 × 800 mm
  • - Number of t-slots: 7, t-slot spacing: 63 mm, t-slot width: 14-h7 mm
  • - Weight of the machine with vertical milling head and. Angle table: 2300 kg
  • - Weight of box base: 170 kg
  • - Weight of the transport box: 400 kg
  • - Amount of coolant m coolant tank: approx. 100 liters
  • - Electrical connection load: 9 kw
