MIKRON WF51C/3M-4

Photo Gallery

MIKRON - WF51C/3M-4DE-MIL-MIK-1987-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

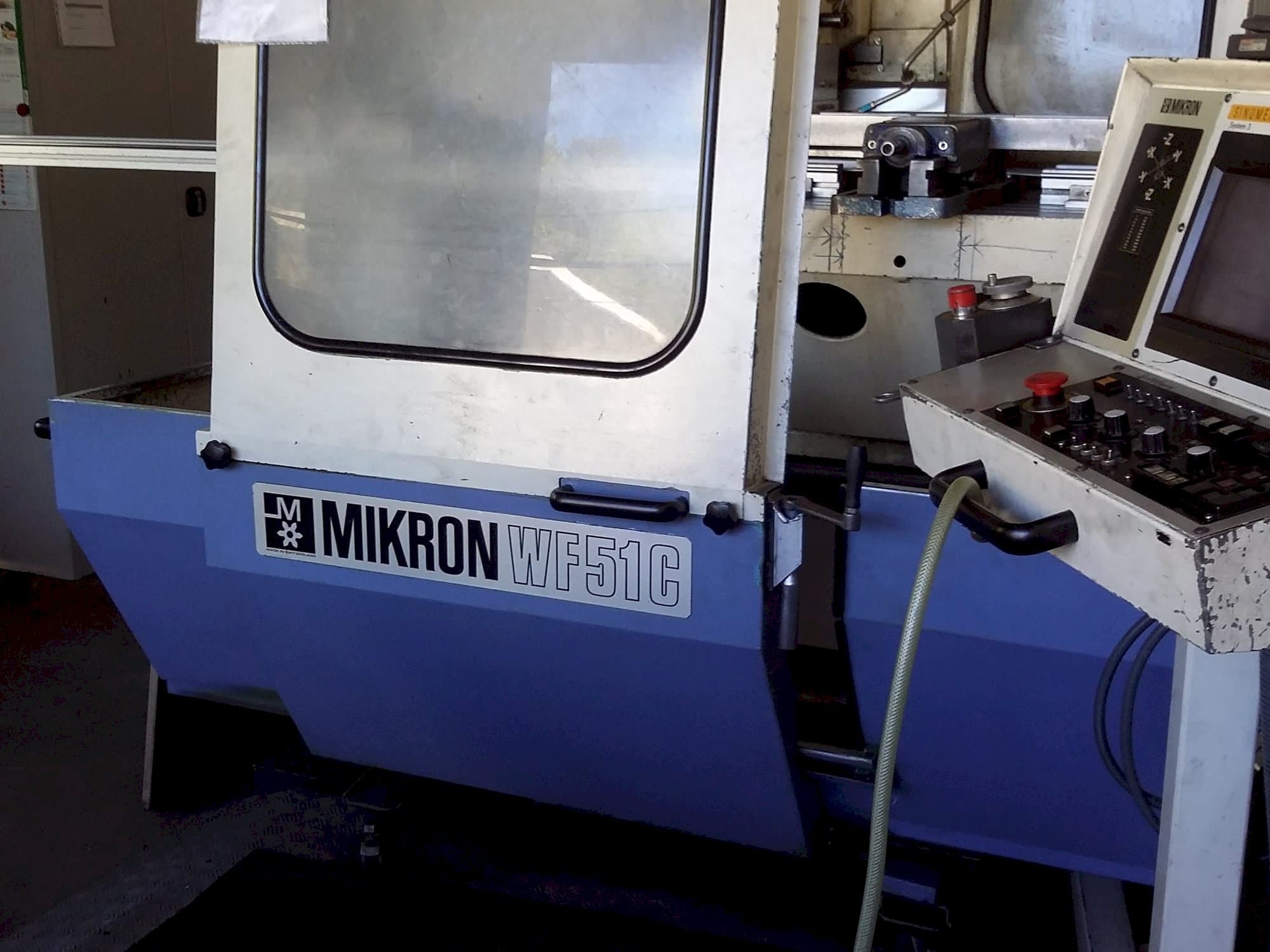

MIKRON WF51C/3M-4 Milling Machine

This MIKRON WF51C/3M-4 Milling Machine was manufactured in 1987 in Germany. It is controlled via a SIEMENS SINUMERIK System 3 control unit. This model counts with a spindle speed up to 3150 rpm. It includes a program memory expansion via external computer, a double milling head, and a wiring diagram.

Overview

brand: MIKRON
year: 1987
MODEL: WF51C/3M-4
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - MIKRON WF51C/3M-4

General Data

Measurements width: 1980 mm
Measurements depth: 2541 mm
Measurements height: 2124 mm
Machine weight: 3100 kg

Control Unit

Model: SINUMERIK System 3
Brand: SIEMENS

Main drive

Spindle speed range: 31,5 - 3150 1/MIN
Spindle motor power: 6,0 - 8,0 kW

Movement

X-AXIS Rapid traverse: 6000 mm/min
Y-AXIS Rapid traverse: 6000 mm/min
Z-AXIS Rapid traverse: 4000 mm/min

Tools

Type of tool holder: ISO 40/M16 with feed groove

Media

Main electronic connection: 380 V
Power consumption: 14 kW

Additional Information

Additional equipment

Wiring diagram
Program memory expansion via external computer
Operating instructions machine
Operating instructions control
Programming instructions

Machine Benefits

Technical Machine Benefits

Double milling head
Number of working spindle speeds 21
Vertical sleeve travel 110 mm
Automatic longitudinal movement of the clamping table (x-axis) 80 mm
Transverse movement of the base slide automatic (y-axis) 500 mm
Automatic vertical movement of the clamping table (z-axis) 460 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
