Mitsui Seiki HR8A

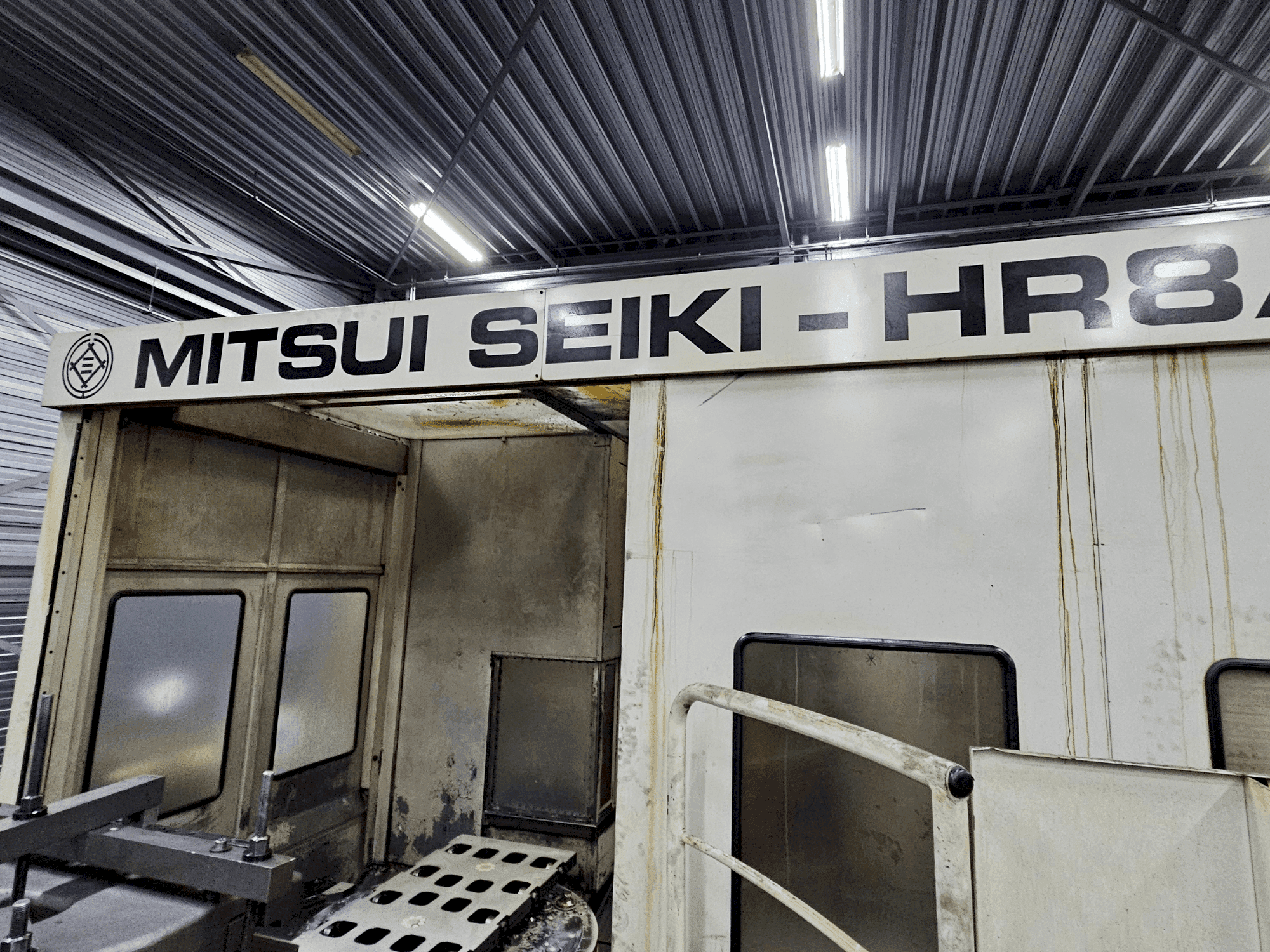

Photo Gallery

Mitsui Seiki - HR8ANL-MIL-MIT-1989-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mitsui Seiki HR8A For Sale | gindumac.com

This 4-axis Mitsui Seiki HR8A horizontal machining centre was manufactured in 1989. It features a Fanuc 11MF control, a 3-pallet system with pallets measuring 1300 x 1300 mm, and a maximum pallet load of 4000 kg. The spindle supports ISO 50 taper, achieves speeds up to 3150 rpm, and delivers 1980 Nm of torque. Additional features include a 270-position tool magazine and a chip conveyor. If you are looking to get high-quality machining capabilities, consider the Mitsui Seiki HR8A machine we have for sale. Contact us for more information.

Overview

brand: Mitsui Seiki
year: 1989
MODEL: HR8A
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Mitsui Seiki HR8A

General Data

Measurements width: 9200 mm
Measurements depth: 12000 mm
Measurements height: 5500 mm
Machine weight: 45000 kg

Control Unit

Brand: FANUC
Model: 11MF

Main drive

Spindle speed range: 8 – 3150 rpm 1/MIN
Spindle motor power: 30/35 kW
Tool taper: ISO 50
Number of axis: 4

Movement

X-AXIS Movement: 1800 mm
X-AXIS Feed Force: 4000 mm/min
X-AXIS Rapid traverse: 7000 mm/min
Y-AXIS Movement: 1500 mm
Y-AXIS Feed Force: 4000 mm/min
Y-AXIS Rapid traverse: 10000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Feed Force: 4000 mm/min
Z-AXIS Rapid traverse: 10000 mm/min
W-Axis Movement: 500 mm

Tools

Max weight: 30 kg
Max tool diameter: 125/250 mm
Max tool length: 470 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Equipped with Linear Scale Feedback System X,Y,Z
Renishaw Probing OMP 60
Total 5-pallets
Tool Magazine Positions: 270

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
