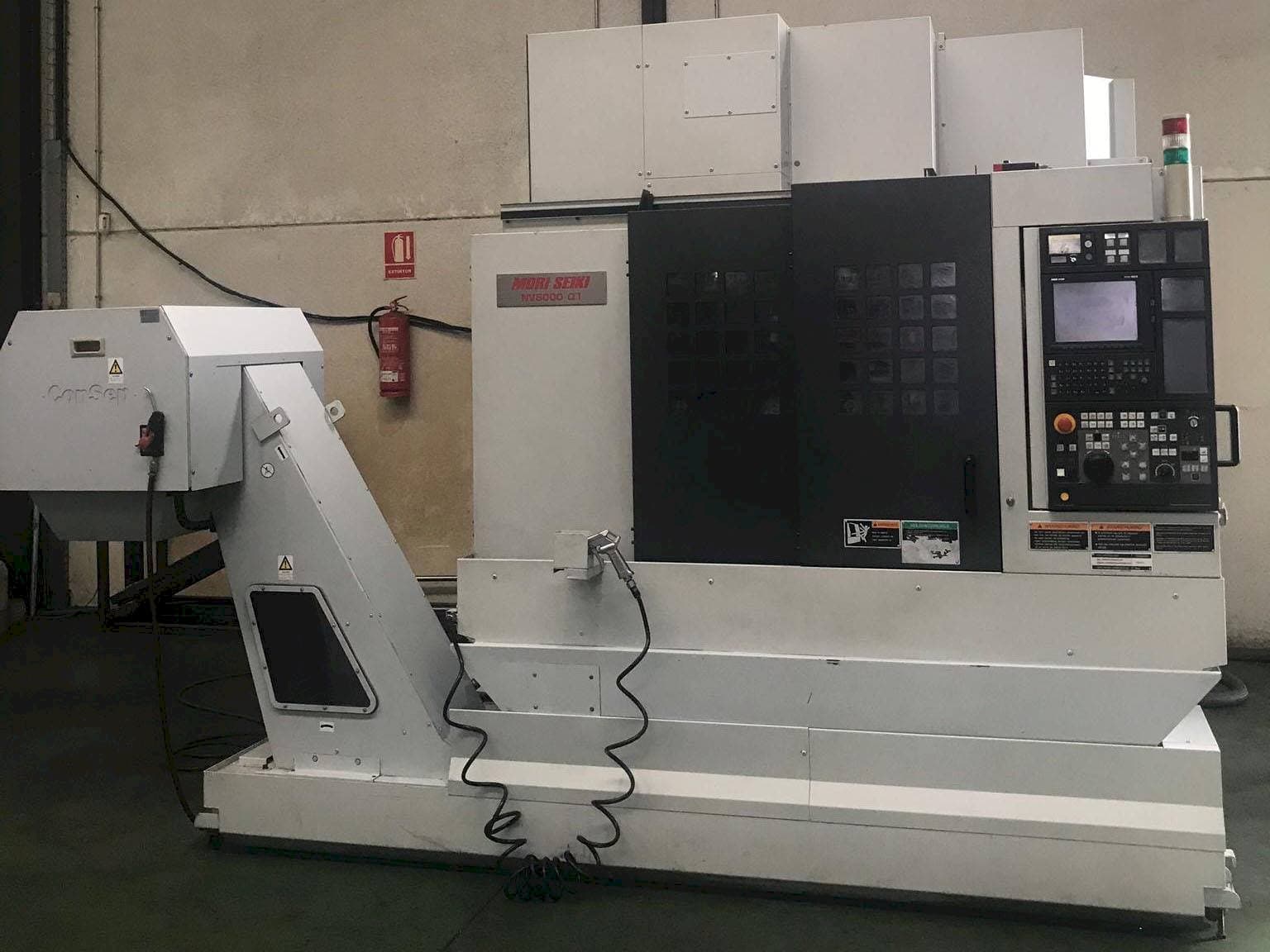

Front view of MORI SEIKI NV5000 Alpha 1A/40 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NV5000 Alpha 1A/40

Photo Gallery

MORI SEIKI - NV5000 Alpha 1A/40ES-MIL-MOR-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI NV5000 Alpha 1A/40 Vertical Machining Center

This MORI SEIKI NV5000 Alpha 1A/40 Vertical Machining Center was manufactured in Japan in 2009. It is equipped with a Mori Seiki MSX-501III Control unit. It is capable of working with a spindle speed up to 14000 rpm.

Overview

brand: MORI SEIKI
year: 2009
MODEL: NV5000 Alpha 1A/40
application type: Milling
Location: Spain
machine type: Vertical Machining Centre

Technical Information - MORI SEIKI NV5000 Alpha 1A/40

General Data

Measurements width: 2710 mm
Measurements depth: 2460 mm
Measurements height: 2650 mm
Machine weight: 6500 kg

Control Unit

Model: MSX-501III

Main drive

Spindle speed range: 14000 1/MIN

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 42 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 42 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 42 m/min

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1100 mm
Outer width: 600 mm
Distance between: 660 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changer: 30 atc
- - Tapered spindle: bt40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
