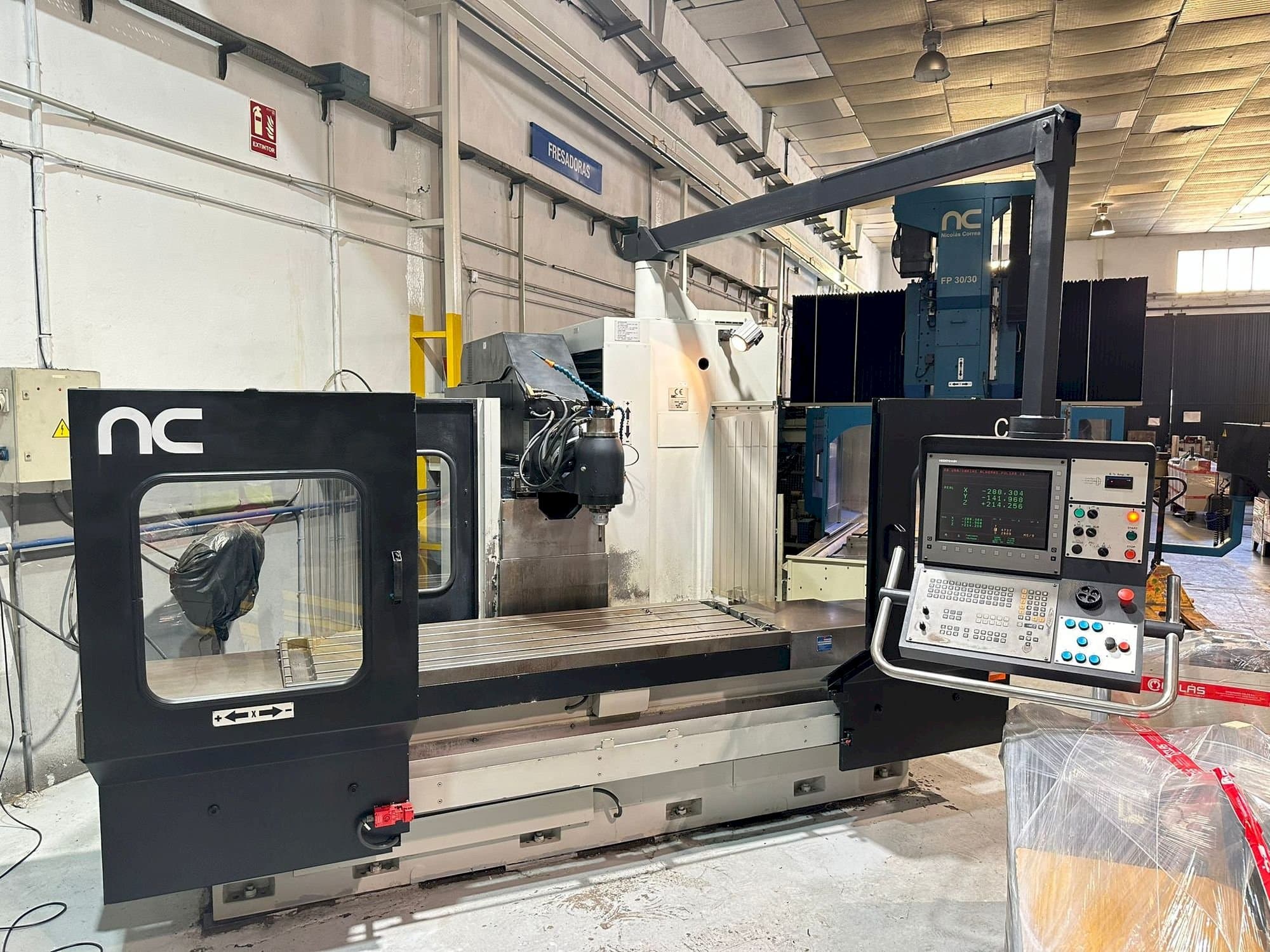

Front view of Nicolas Correa CF 17 D machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Nicolas Correa CF 17 D

Photo Gallery

Nicolas Correa - CF 17 DES-MIL-NIC-2000-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NICOLAS CORREA CF 17 D Bed Type Milling machine

This NICOLAS CORREA CF 17 D Bed Type Milling machine was manufactured in the year 2000 and has 28838 production hours. It is equipped with a HEIDENHAIN TNC-410 control unit and has 3 axis. The machine has a spindle speed of 20-3000 rpm.

Overview

brand: Nicolas Correa
year: 2000
MODEL: CF 17 D
production hours: 28838
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Nicolas Correa CF 17 D

General Data

Measurements width: 3700 mm
Measurements depth: 2400 mm
Measurements height: 2700 mm
Machine weight: 9000 kg

Control Unit

Model: TNC-410
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 – 3000 1/MIN
Spindle motor power: 17 kW
Tool taper: ISO 50
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 12.000 mm/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 12.000 mm/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 12.000 mm/min

Table

Outer length: 2000 mm
Outer width: 700 mm
Table load: 3500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Head power: 17 kw
- - Hydraulic clamping tool
- - Large qty of tools & accessories:
- - Total power: 24 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
