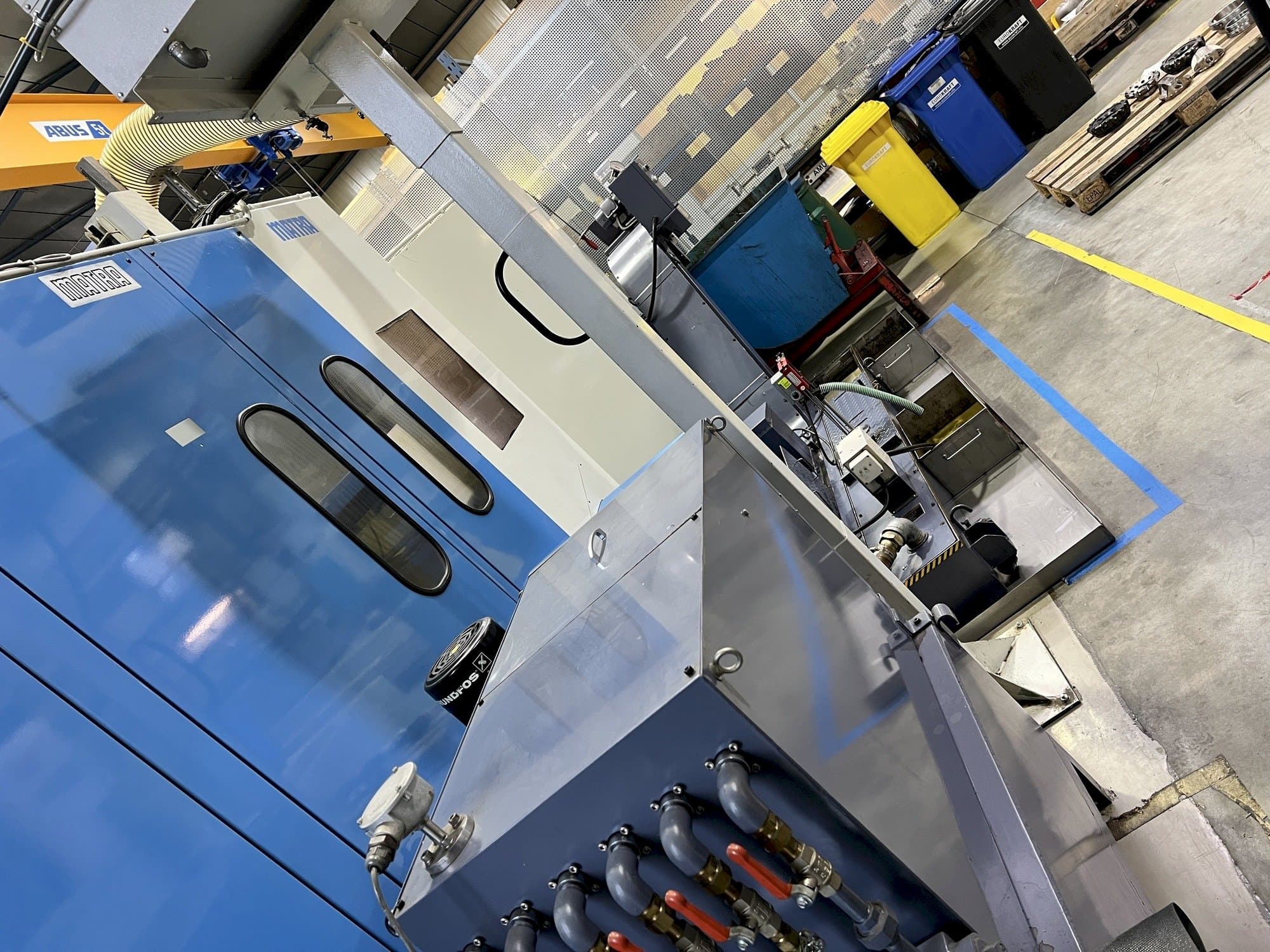

Front view of OKK Kch 500 - 8 Tische machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

OKK Kch 500 - 8 Tische

Photo Gallery

OKK - Kch 500 - 8 TischeDE-MIL-OKK-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
OKK Kch 500 - 8 Tische Horizontal Machining Center

This OKK Kch 500 - 8 Tische Horizontal Machining Center was manufactured in Japan in 1995. It has been working for 21358 hours of which 19024 are cut time. This machine works with a spindle speed between 30 - 6000 rpm and a spindle power of 11/15 kW. Also counts with a control unit of the same brand.

Overview

brand: OKK
year: 1995
MODEL: Kch 500 - 8 Tische
production hours: 21358
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - OKK Kch 500 - 8 Tische

General Data

Measurements width: 2985 mm
Measurements depth: 4920 mm
Measurements height: 2910 mm
Machine weight: 12100 kg

Main drive

Spindle speed range: 30 - 6000 1/MIN
Spindle motor power: 11 / 15 kW
Tool taper: BT50

Movement

X-AXIS Movement: 720 mm
X-AXIS Rapid traverse: 24000 mm/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Movement: 640 mm
Z-AXIS Rapid traverse: 24000 mm/min

Table

Height adjustment: 900 mm
Table load: 600 kg

Tools

Number of index: 61 / 41

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle center to pallet surface 150 - 790 mm
- - Pallet dimmension 500 x 500 mm
- - Feed rate 1 - 5000 mm / min
- - Feed axis motro ac servo x, y, z
- - Power source 43 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
