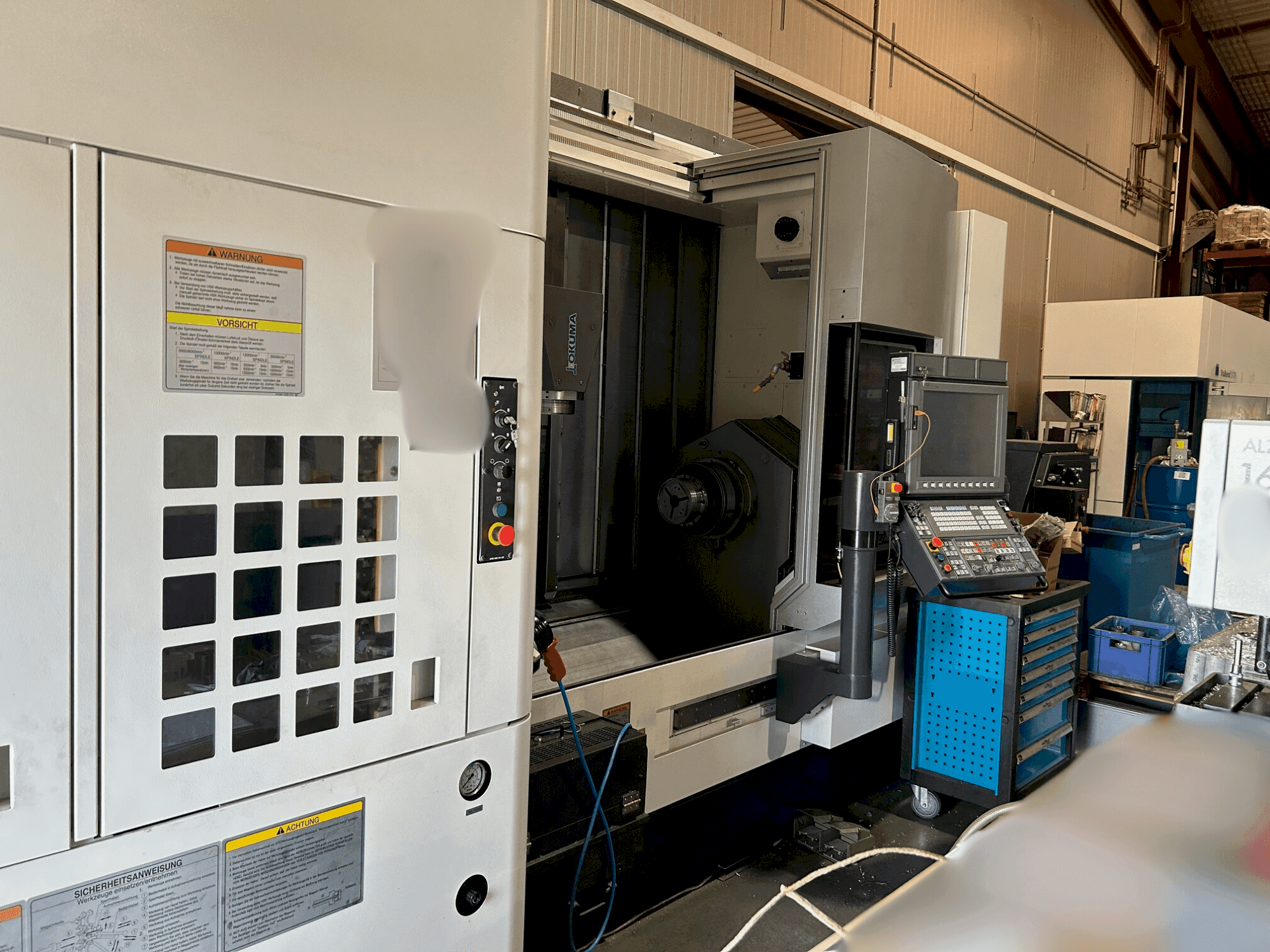

Front view of Okuma Multus U3000 1SW 1500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma Multus U3000 1SW 1500

Photo Gallery

Okuma - Multus U3000 1SW 1500DE-MIL-OKU-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma Multus U3000 1SW 1500 For Sale | gindumac.com

This 6-axis Okuma Multus U3000 1SW 1500 was manufactured in 2023. A vertical machining center featuring a swing over saddle of ø650 mm, it can handle a maximum machining diameter and length of 650mm and 1500mm, respectively. It boasts extensive travels with X: 645m, Z: 1600mm, Y: 250mm, W: 1594mm, and a C-axis of 360 degrees. Ideal for complex machining tasks, the Okuma Multus U3000 1SW 1500 machine we have for sale. Contact us for further details regarding this vertical machining center.

Overview

brand: Okuma
year: 2023
MODEL: Multus U3000 1SW 1500
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: OKUMA

Technical Information - Okuma Multus U3000 1SW 1500

General Data

Measurements width: 2995 mm
Measurements depth: 5425 mm
Measurements height: 2955 mm
Machine weight: 16500 kg

Control Unit

Model: OSP-P300SA
Brand: OKUMA

Main drive

Number of spindles: 1
Spindle speed range: 4200 rpm 1/MIN
Spindle motor power: 22 kw
Spindle bore: ø91 mm
Number of axis: 6

Movement

X-AXIS Movement: 645 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 1600 mm
W-Axis Movement: 1594 mm
B-AXIS Movement: 240° MM
C-AXIS Movement: 360° MM
AXIS 1 Movement: -30 - 210 °
AXIS 2 Movement: 360 °

Workpiece

Workpiece drm: 650 mm
Workpiece x: 1500 mm

Turret

Number of turrets: 1
Rotating tools: Yes

Media

Internal cooling: Yes

Additional Information

Additional equipment

Capto C6 tool system for H1 turret
Internal coolant supply for rotating tools, pump with pressure max 20 bar including bag filter, external cooling of tool spindle, pump with pressure max 3 bar
Tool magazine with 80 pockets
External air supply and through the tool spindle for turning holders and rotating tools
Hinge belt tensioner Interlit ISF
Drum trough filter TMF 300 with clean tank 980
Workpiece gripper programmable, for workpiece size ø 70 x 150 mm
80 tool positions
Spindle front bearing diameter 140mm / Spindle bore diameter 91mm
Counter spindle 420 Nm; 5000 1/minSpindle front bearing diameter 120mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
