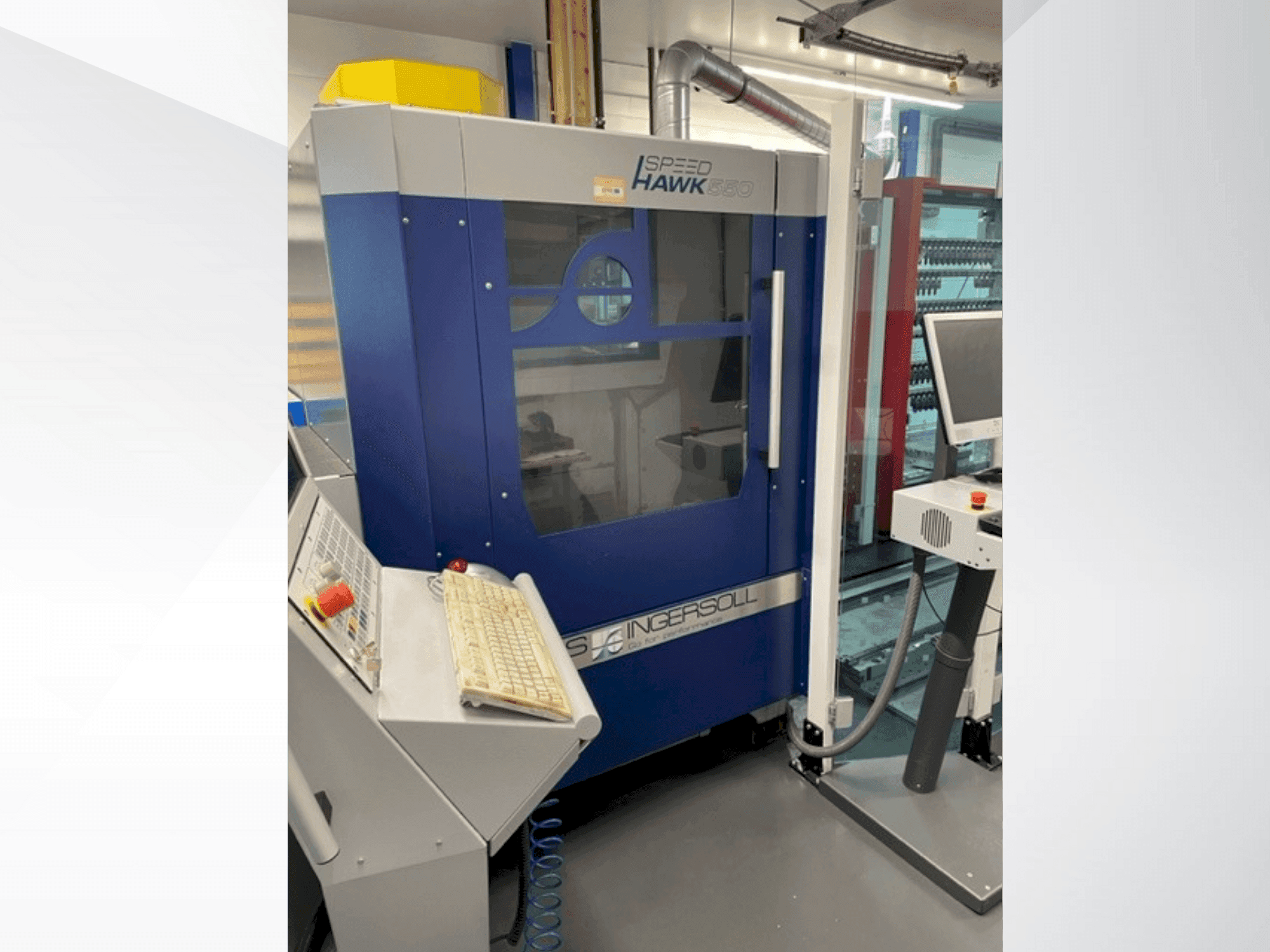

Front view of OPS INGERSOLL SPEED HAWK 550 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

OPS INGERSOLL SPEED HAWK 550

Photo Gallery

OPS INGERSOLL - SPEED HAWK 550DE-MIL-OPS-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OPS INGERSOLL SPEED HAWK 550 | Milling Machine

This 3-axis OPS INGERSOLL SPEED HAWK 550 milling machine was manufactured in 2010. It features a high-frequency spindle with speeds up to 42,000 rpm, HSK E40, and a laser system for tool breakage control. Additionally, it includes an infrared measuring probe and a MultiChange Easy basic unit. Ideal for milling, measuring, and die-sinking electrodes, the OPS INGERSOLL SPEED HAWK 550 represents a robust opportunity. It is optional a separate 40-position workpiece changer , a shrinking unit available and approx. 500 electrode holders available. Contact us for further details regarding this milling machine.

Overview

brand: OPS INGERSOLL
year: 2010
MODEL: SPEED HAWK 550
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - OPS INGERSOLL SPEED HAWK 550

Control Unit

Model: 2060

Main drive

Number of spindles: 1
Spindle speed range: 42000 rpm 1/MIN
Tool taper: HSK E40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Additional Information

Additional equipment

Laser system for tool breakage control and tool length-diameter compensation
Infrared measuring probe
MultiChange Easy basic unit
Diebold shrink unit
Optional: Around 500 pieces electrode tools available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
