Pfauter P400

Photo Gallery

Pfauter - P400DE-GEA-PFA-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

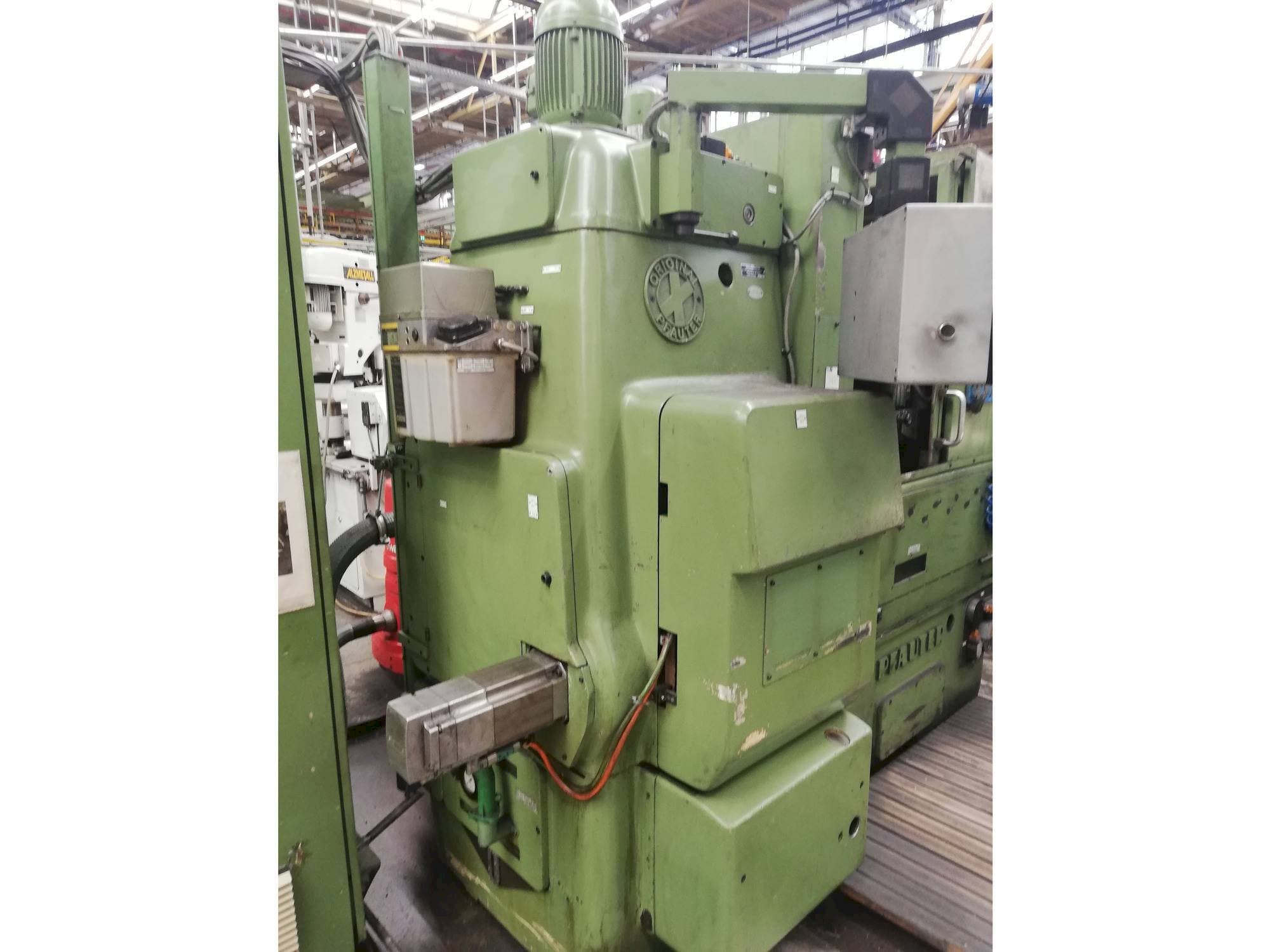

This Pfauter P400 Gear Hobbing Machine was rebuilt in 2007. It has a new control structure with S7 PLC panel. This machine operates through two servo motors for axial (Z-axis) and table drive (C-axis). Retrofitted as special milling machine for brake plates.

Overview

brand: Pfauter
year: 2007
MODEL: P400
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Pfauter P400

Control Unit

Brand: SIEMENS

Additional Information

Machine Benefits

Qualitative Machine Benefits

Ec declaration of conformity
New control panel, control structure with s7 plc
Largest distance from clamping table to counterholder to center of milling spindle 638/470mm
Milling spindle; taper 1 : 5 largest diameter milling cutter 160mm
Largest width diameter 160mm
Distance from axis to milling spindle and clamping spindle without counterholder graste: 300mm / smallest 30mm
Adjustability of the milling spindle: by itself 100mm / by hand 120mm
Milling slide: swiveling up to 240 degrees
Table: diameter cross rings 400mm bore diameter 80mm
Spherical milling device, step-shifting device

Technical Machine Benefits

Two servo motors for axial (z-axis) and table drive (c-axis)
Status light column, brake module make pold for cutter drive
Cone: moise 5
Connection for chip extraction, pold braking device
Cd's with: complete electrical diagrams, cd's with: docu , s7, simo-drive, sinocom
Full working chip guard with filet suction base 1840x730mm
Work arbor 20h6 25h6, milling arbor 27 32 diameter j 5
Working range largest part to be milled module 6mm
Largest diameter to be machined with/without counterholder 400mm
Largest milling width: spur gears 300mm

Extra Information

Especially suitable for: Straight and helical gears, Worm gears

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
