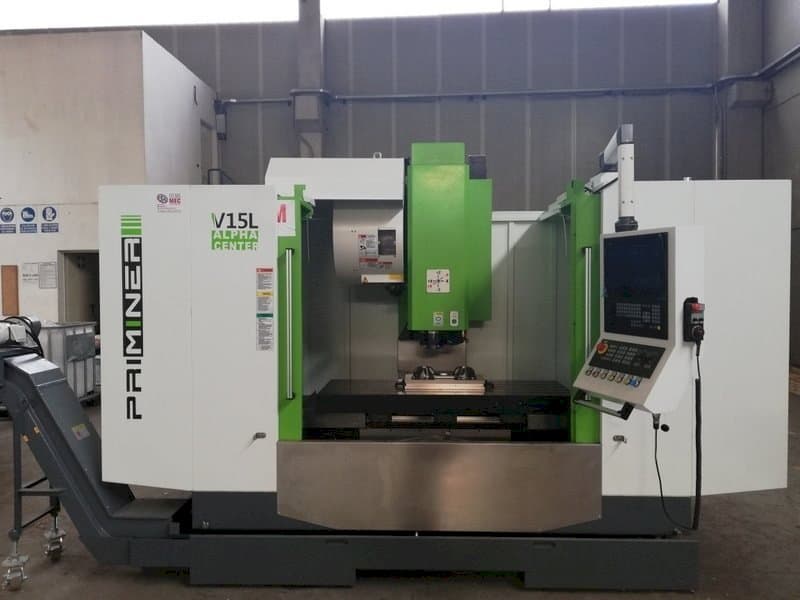

Priminer V 15L Vertical Machining Center

This Priminer V 15L Vertical Machining Center was built in 2019. This machine is equipped with a SIEMENS SINUMERIK 828 D Control unit and can perform with a spindle speed of 15000 rpm. This machine stands out for its perfectly good conditions, as it is a showroom machine.

Overview

brand: Priminer
year: 2019
MODEL: V 15L
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Priminer V 15L

General Data

Measurements width: 3700 mm
Measurements depth: 2640 mm
Measurements height: 3100 mm
Machine weight: 8500 kg

Control Unit

Model: SINUMERIK 828 D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 12/27 kW

Movement

X-AXIS Movement: 1500 mm
X-AXIS Working Feed: 1-12000 mm/min
X-AXIS Rapid traverse: 24 m/min
X-AXIS Accuracy: +/- 0.004/300 mm
Y-AXIS Movement: 760 mm
Y-AXIS Working Feed: 1-12000 mm/min
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 670 mm
Z-AXIS Working Feed: 1-12000 mm/min
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 1700 mm
Outer width: 600 mm
TSlots size: 18 X 5 X 100 MM
Distance between: 797 mm
Table load: 1200 kg

Tools

Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool positions n° 24/30
- - High pressure pump
- - Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
