Quaser MV184E

Photo Gallery

Quaser - MV184EGB-MIL-QUA-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

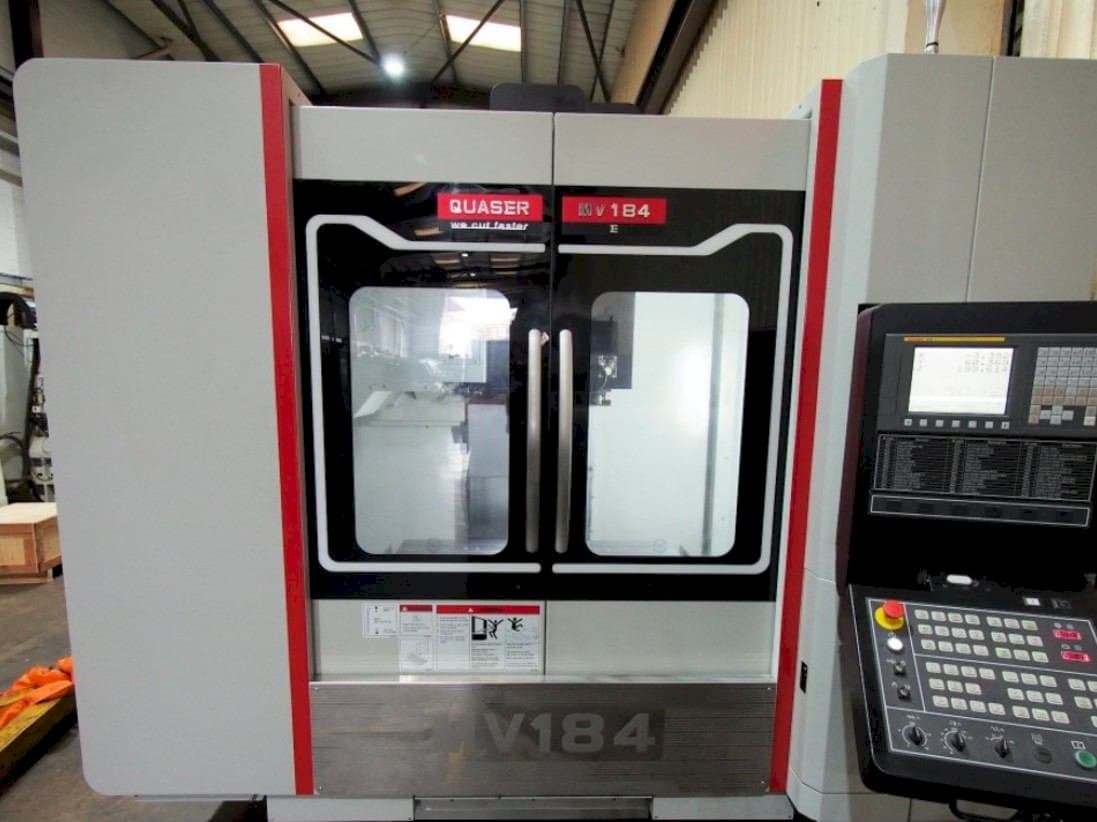

Quaser MV184E Vertical Machining Center

This Quaser MV184E Vertical Machining Center from 2019 was built in Taiwan. This 3 axis machine can work with a spindle speed range 12000 rpm and a table dimension of 1200 x 600 mm. It only count with 629 cutting hours, machine in very good condition.

Overview

brand: Quaser
year: 2019
MODEL: MV184E
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Quaser MV184E

General Data

Measurements width: 4345 mm
Measurements depth: 2720 mm
Measurements height: 2815 mm
Machine weight: 7090 kg

Control Unit

Model: OI
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 610 MM
Z-AXIS Movement: 610 MM

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 1200 MM
Outer width: 600 MM

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 76/125 mm
Max tool length: 280 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Min - max height under spindle 100 - 710mm
Rapid feedrates xyz: 40 x 40 x 36m/minute
Spindle motor power 18. 5kw
Tool change time (chip to chip) 4 seconds
Through spindle coolant, coolant
Interlocked guards, low volt light, manuals, remote hand wheel
Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
