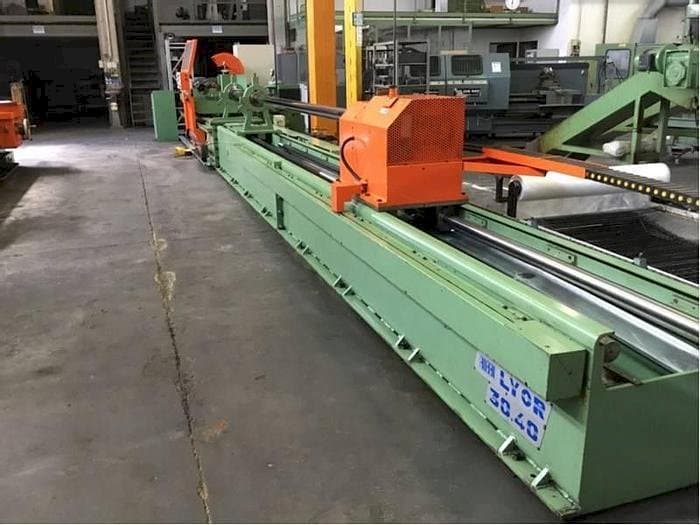

ROBBI LYOR 30/40 Boring machine

This ROBBI LYOR 30/40 Boring machine was manufactured in Italy in 2007. This machine operates with a rotation speed range of 10-150 rpm and a bore diameter of 50 - 250 mm. This is a horizontal tube honing machine.

Overview

brand: ROBBI
year: 2007
MODEL: LYOR 30/40
application type: Other Machine Tools
Location: Italy
machine type: Boring Machine (Metal)

Technical Information - ROBBI LYOR 30/40

General Data

Measurements width: 1500 mm
Measurements depth: 13000 mm
Measurements height: 800 mm

Main drive

Spindle speed range: 10 - 150 rpm 1/MIN
Spindle motor power: 11 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bore diameter Ø 50 - 250 mm
- - Head stroke max. 5. 400 mm
- - Honing length max. 4. 000 mm
- - Height of the spindle axis to the ground 1. 050 mm
- - Self-centering diameter Ø 400 mm
- - Rotating diameter max. Ø 800 mm
- - Translation speed of the sander 0-35 m/min
Qualitative Machine Benefits:
- - This is a horizontal tube honing machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
