SAMAG TFZ 2L-1000

Photo Gallery

SAMAG - TFZ 2L-1000DE-DRI-SAM-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

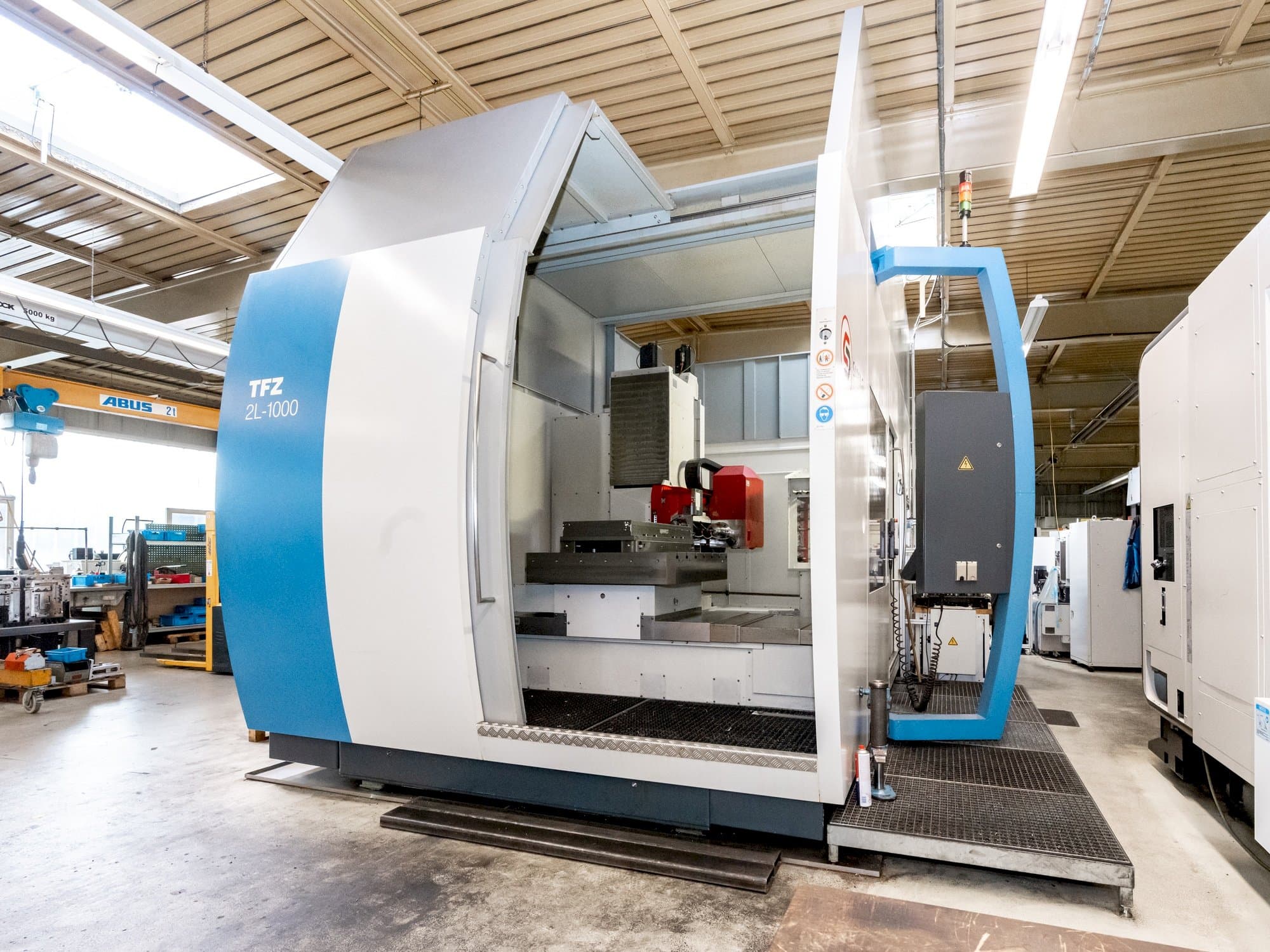

SAMAG TFZ 2L-1000 Drilling machine

This SAMAG TFZ 2L-1000 Drilling machine was made in 2015 in Germany and has 13585 production hours. It is equipped with a HEIDENHAIN control unit. It has a NC rotary table B-axis with 1100x1100mm (7t) and an a-axis as drilling and milling unit with swivel range -30/+15°. The machine has a reinforced main spindle drive with spindle speed 6000 rpm. As additional equipment it comes with tool changer for ISO 40, low-maintenance oil mist extraction system, traveling support steady rests for drilling diameters up to 25.5mm, drip tray with step grate for X-axis 1600mm and rinsing gun.

Overview

brand: SAMAG
year: 2015
MODEL: TFZ 2L-1000
production hours: 13585
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - SAMAG TFZ 2L-1000

General Data

Measurements width: 6300 MM
Measurements depth: 7400 MM
Measurements height: 4050 MM
Machine weight: 30000 kg (with cabinet)

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Tool taper: ISO 40

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1100 mm

Tools

Max weight: 5 kg
Max tool length: 250 mm

Additional Information

Additional equipment

tool changer for ISO 40
low-maintenance oil mist extraction system
rinsing gun
drip tray with step grate for X-axis 1600mm
traveling support steady rests for drilling diameters up to 25.5mm
Various drills (single-lip drills and indexable insert drills): Drill grinding machine / CAM software licence: GIBcam-DRILL software. (A fee could be charged for the transfer of the licence, this has to be clarified with GIBCAM. the buyer is responsible for the transfer.).
Optional for extra charge: Magnetic clamping plate with its own control cabinet (SAV brand, www.sav.de, dimensions 1200x600mm).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
