Soraluce FL-13000

Photo Gallery

Soraluce - FL-13000ES-MIL-SOR-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

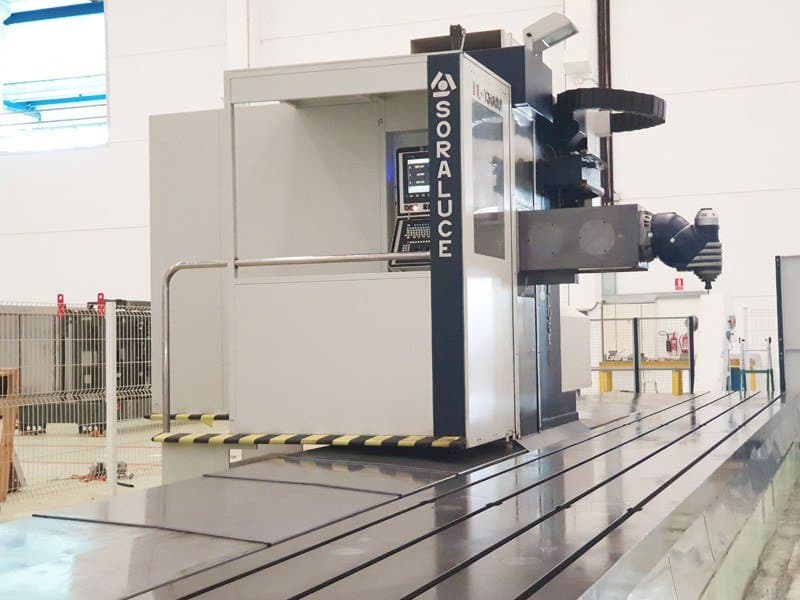

Soraluce FL-13000 Milling Machine

This Soraluce FL-13000 Milling Machine was built in 2009. Equipped with a FAGOR 8070 Control unit, this machine can operate with a spindle speed up to 3000 rpm. Included with this machine are a chip extractor, an electronic handwheel, a Marposs part probing system and all documentation.

Overview

brand: Soraluce
year: 2009
MODEL: FL-13000
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: FAGOR

Technical Information - Soraluce FL-13000

General Data

Measurements width: 18700 mm
Measurements depth: 4400 mm
Measurements height: 3800 mm

Control Unit

Model: 8070
Brand: FAGOR

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 28 kW

Movement

X-AXIS Movement: 12500 mm
X-AXIS Working Feed: 0 to 10000 mm / min
Y-AXIS Movement: 1400 mm
Y-AXIS Working Feed: 0 to 10000 mm / min
Z-AXIS Movement: 1000 mm
Z-AXIS Working Feed: 0 to 10000 mm / min

Table

Outer length: 13000 mm
Outer width: 1000 mm
Table load: 10000 kg / m2

Tools

Number of stations: 40
Slots in storage: 4
Max tool diameter: 125 mm
Max tool length: 400 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

chip conveyor
Electronic handwheel
Marposs part probing system
documentation

Machine Benefits

Technical Machine Benefits

Spindle cone bt-50
Tool changer: arm type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
