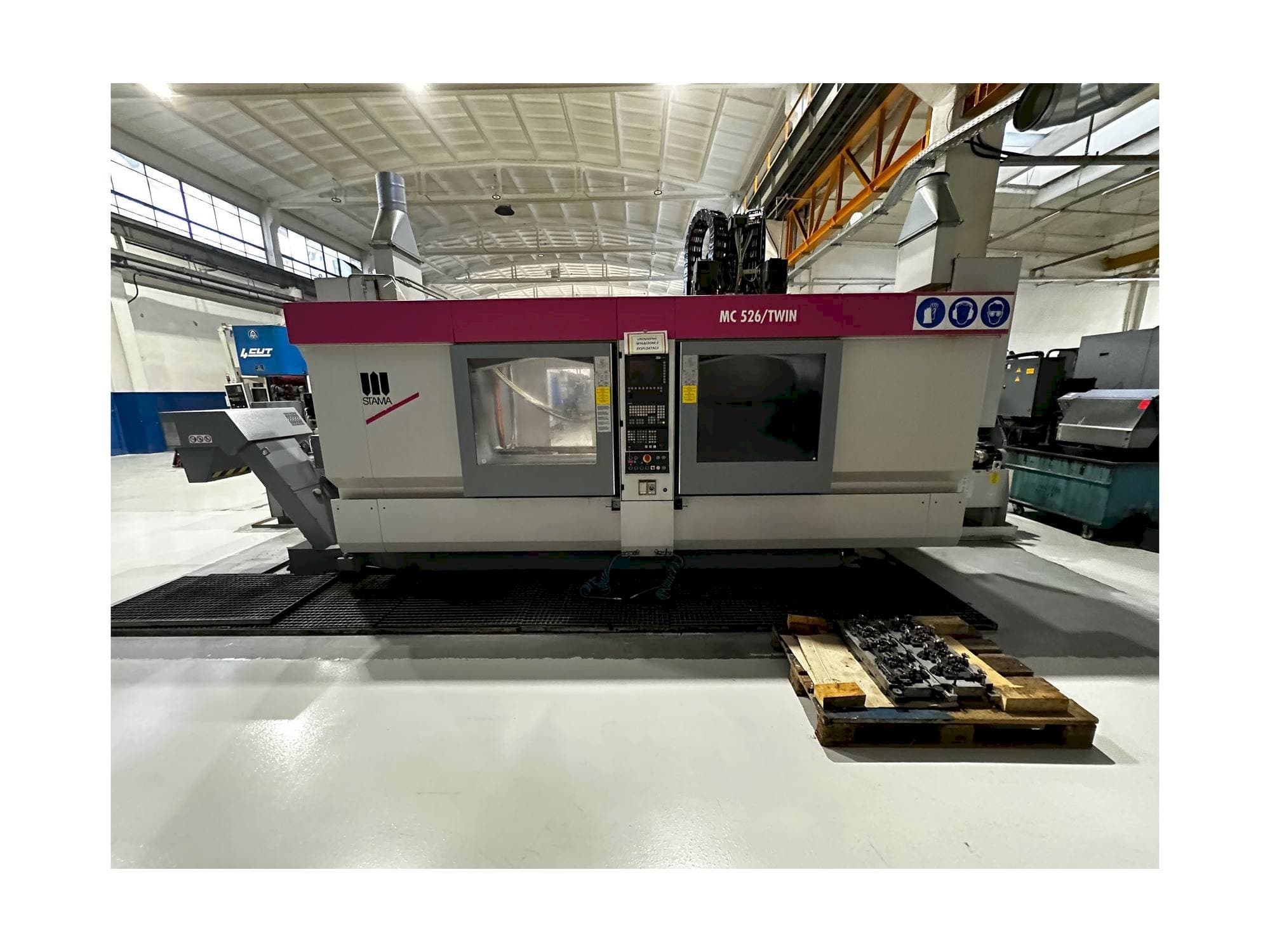

Front view of STAMA MC 526 / TWIN machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

STAMA MC 526 / TWIN

Photo Gallery

STAMA - MC 526 / TWINPL-MIL-STA-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Stama MC 526 / TWIN Vertical Machining center

This Stama MC 526 / TWIN Vertical Machining center was manufactured in the year 2014 in Germany and has 38403 production hours. It is equipped with a SIEMENS 840D control unit. The machine has a spindle speed of 36 - 12000 rpm.

Overview

brand: STAMA
year: 2014
MODEL: MC 526 / TWIN
production hours: 38403
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - STAMA MC 526 / TWIN

General Data

Measurements width: 8800 mm
Measurements depth: 4200 mm
Measurements height: 3300 mm
Machine weight: 9500 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 36 - 12000 1/MIN
Tool taper: SK40/HSK-A63

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 360 mm
Z-AXIS Rapid traverse: 60 m/min

Tools

Max tool diameter: 140 mm
Max tool length: 300 mm
Type of tool holder: HSK63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Milling performance [cm³]: 210
- - Max. Drilling diameter [mm]: 18
- - Max. Tapping diameter: m20
- - Max. Feed force [n] x-axis: 4,000 y-axis: 4,000 z-axis: 8,000
- - Feed speed x-axis [mm]:min. : 1 max. : 10,000 y-axis [mm]:min. : 1 max. : 10,000 z-axis [mm]:min. : 1 max. : 10,000
- - Max. Torque [nm]: 30, at (% ed): 100%
- - Overhang: 484 mm
- - Spindle bearing diameter: 65 mm
- - Table-spindle nose min. /max: 500 / 860 mm
- - Overhang: 484 mm
Qualitative Machine Benefits:
- - Tool tensioning : 18000 n
- - Number of tools: 70

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
