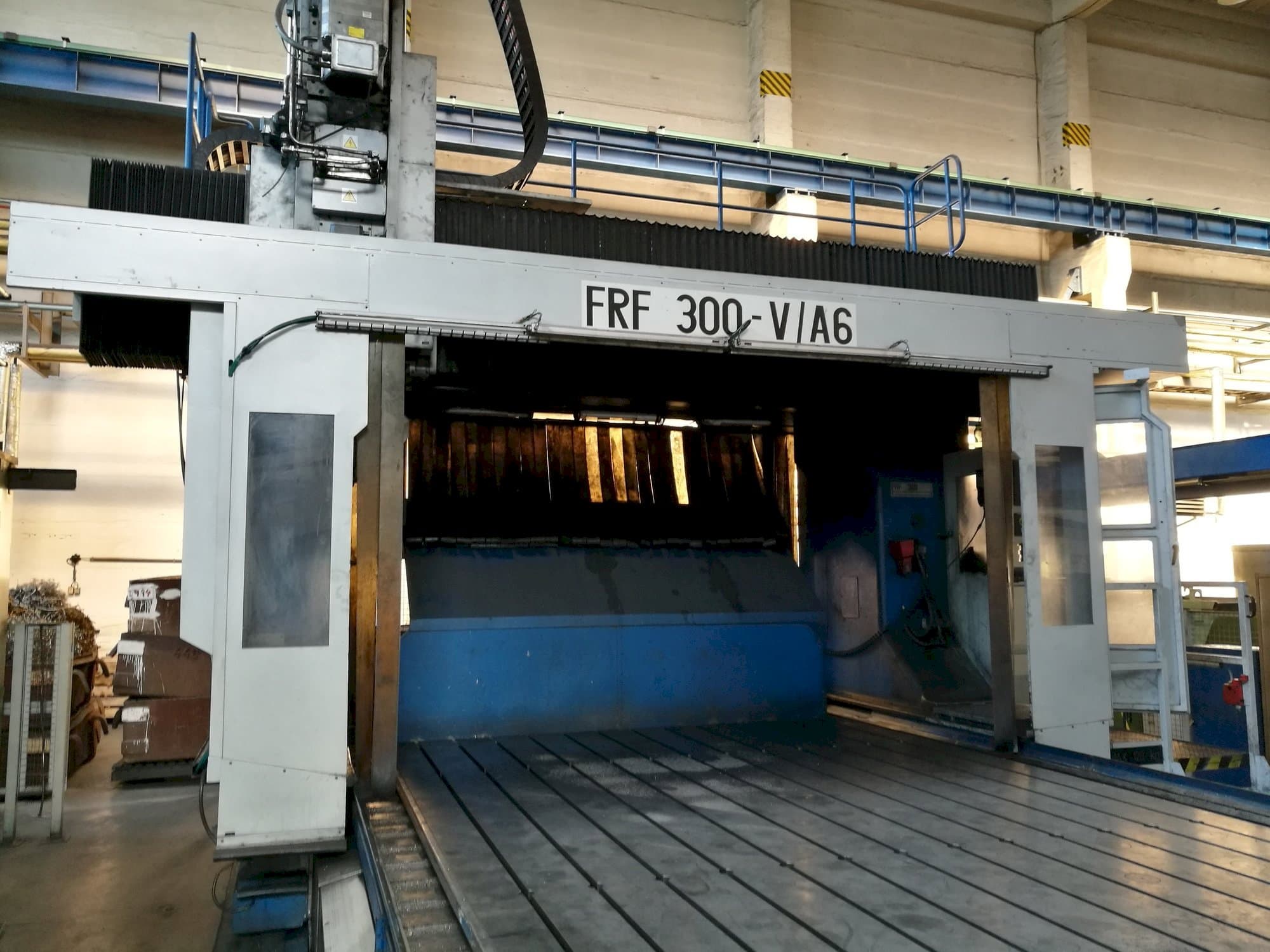

Left side view of TOS FRF 300 V/A6 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TOS FRF 300 V/A6

Photo Gallery

TOS - FRF 300 V/A6CZ-MIL-TOS-2009-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TOS FRF 300 V/A6 Milling Machine

This TOS FRF 300 V/A6 Milling Machine was built in 2009 in the Czech Republic. Operated through a SIEMENS SINUMERIK 840 D Control unit, this machine can work with a spindle speed up to 20-4000 rpm. It stands out for its rapid feed and its automatic lubrication system among many other technical benefits.

Overview

brand: TOS
year: 2009
MODEL: FRF 300 V/A6
production hours: 0
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
control unit brand: SIEMENS

Technical Information - TOS FRF 300 V/A6

General Data

Measurements width: 11280 mm
Measurements depth: 8376 mm
Measurements height: 5830 mm
Machine weight: 62000 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 20-4000 1/MIN

Movement

X-AXIS Movement: 5000 mm
Y-AXIS Movement: 3800 mm
Z-AXIS Movement: 1250 mm

Workpiece

Workpiece y: 3550 mm
Workpiece z: 2050 mm

Table

Outer length: 6000 mm
Outer width: 3000 mm
Number of tslots: 13
Distance between: 220 mm

Tools

Type of tool holder: ISO 50

Media

Power consumption: 60 kVA

Additional Information

Additional equipment

Direct head VA1: 4000 rpm/2000 Nm (26164 hours)
Angle head VP1: 4000 rpm/2000 Nm (519 hours)
2-axis head VK: 4000 rpm/1000 Nm (13795 hours)

Machine Benefits

Qualitative Machine Benefits

In good condition, regularly maintained

Technical Machine Benefits

Distance between columns 3550 mm
Distance between cross-rail and table 2050 mm
Max. Table load 4000 kg/m2v
Automatic lubrication system for axes x, y, z
Cooling unit for head temperature stabilization
High pressure cooling 20 bar (liquid) / 6 bar (air)
Main motor power 37 kw
Workpiece probe mh-inprocess 20. 00
Rapid feed x, y - 15 m/min; z - 12 m/min
Hand wheel bhg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
