VOLTER - L2016CZ-MIL-VOL-2022-00001

Name: VOLTER L2016
Brand: VOLTER
SKU: CZ-MIL-VOL-2022-00001
Price: 41000 EUR
Availability: InStock

41,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used VOLTER L2016 For sale | gindumac.com

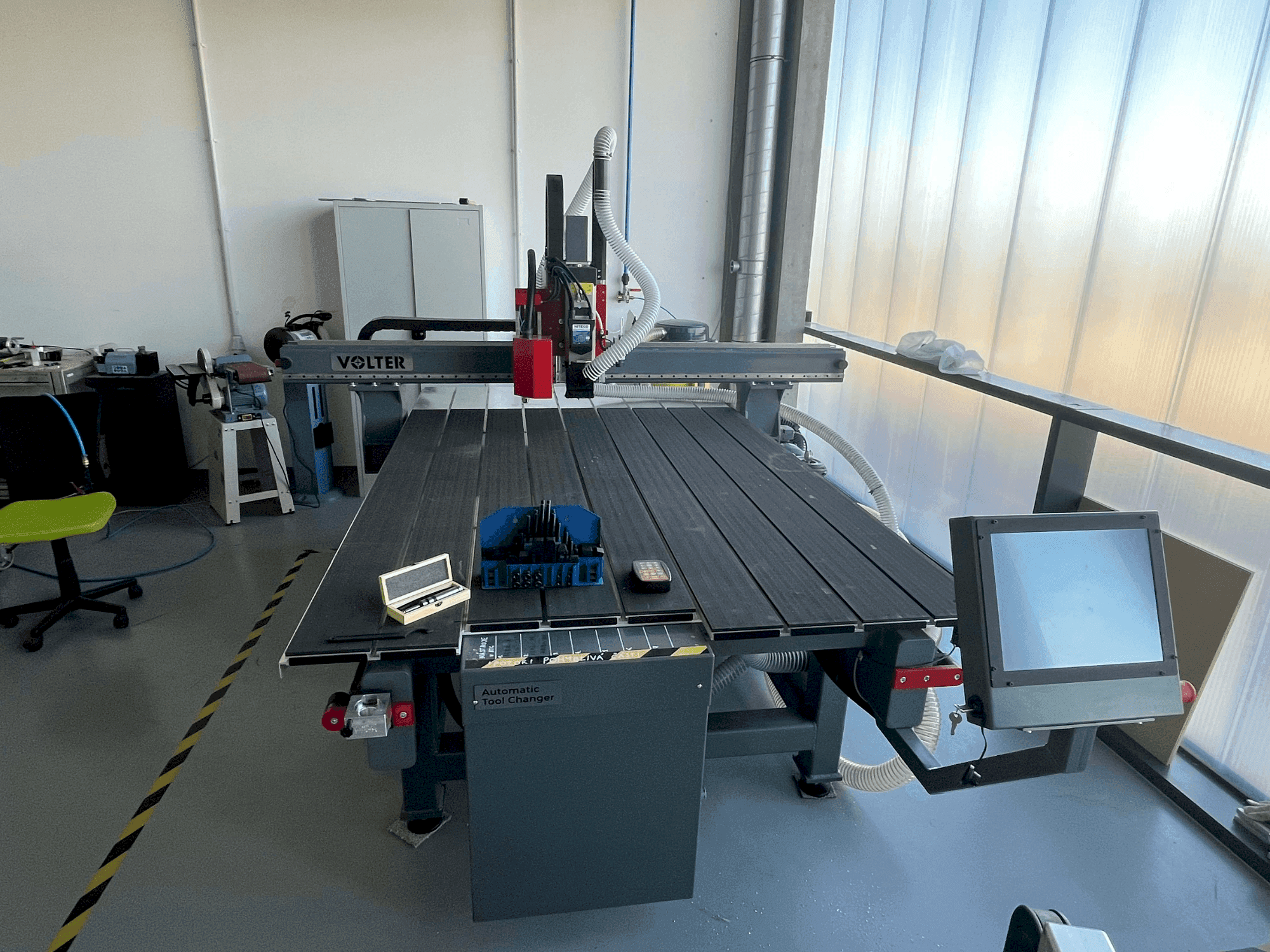

This 3-axis VOLTER L2016 milling machine was manufactured in 2022 and features a robust 7.5 kW HITECO spindle at 24000 RPM, a 4 zone vacuum table with T-slot clamping, and an automatic tool change system for up to 7 tools. It includes a user-friendly touch screen interface with multi-language support and a powerful VOLTER CS controller for efficient operation. With only 120 working hours, the VOLter L2016 machine we have for sale is in excellent condition. Contact us for more information.

Overview

brand: VOLTER
year: 2022
MODEL: L2016
production hours: 120
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine
availability: Immediately

Technical Information - VOLTER L2016

General Data

Measurements width: 2100 mm
Measurements depth: 3300 mm
Machine weight: 1200 kg

Main drive

Number of spindles: 1
Spindle speed range: 24000 RPM 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 3

Movement

Z-AXIS Movement: 160 mm

Additional Equipment

- Accessories included: 7 pcs ISO30-ER32 collet clamp, 12 pcs ER32 collet set, M10 clamp set - T12 slot - 58-piece, approach probe with indicator
- Sawdust extractor: MasterVac TS220
- Automatic tool cooling
- Mechanical clamping brackets
- Servomotors
- Inclined toothed combs
- Start point laser pointer
- IP camera module for loading print marks
- Pneumatic tangential knife
- Remote wireless motion controller for easy origin setting

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work surface: 2200 x 1610 mm
- - Features: 4 zone vacuum table + t slot clamping system
- - Type: automatic tool change system
- - Capacity: 7 tools
- - 5. 5 kw vacuum suction pump
- - High-speed spindle, advanced vacuum and clamping systems, and comprehensive tool change capabilities.
Qualitative Machine Benefits:
- - Very friendly user interface with touch screen and multi-language support
- - User-friendly interface, precise control with servomotors and laser pointer, and efficient operation with volter cs controller.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
