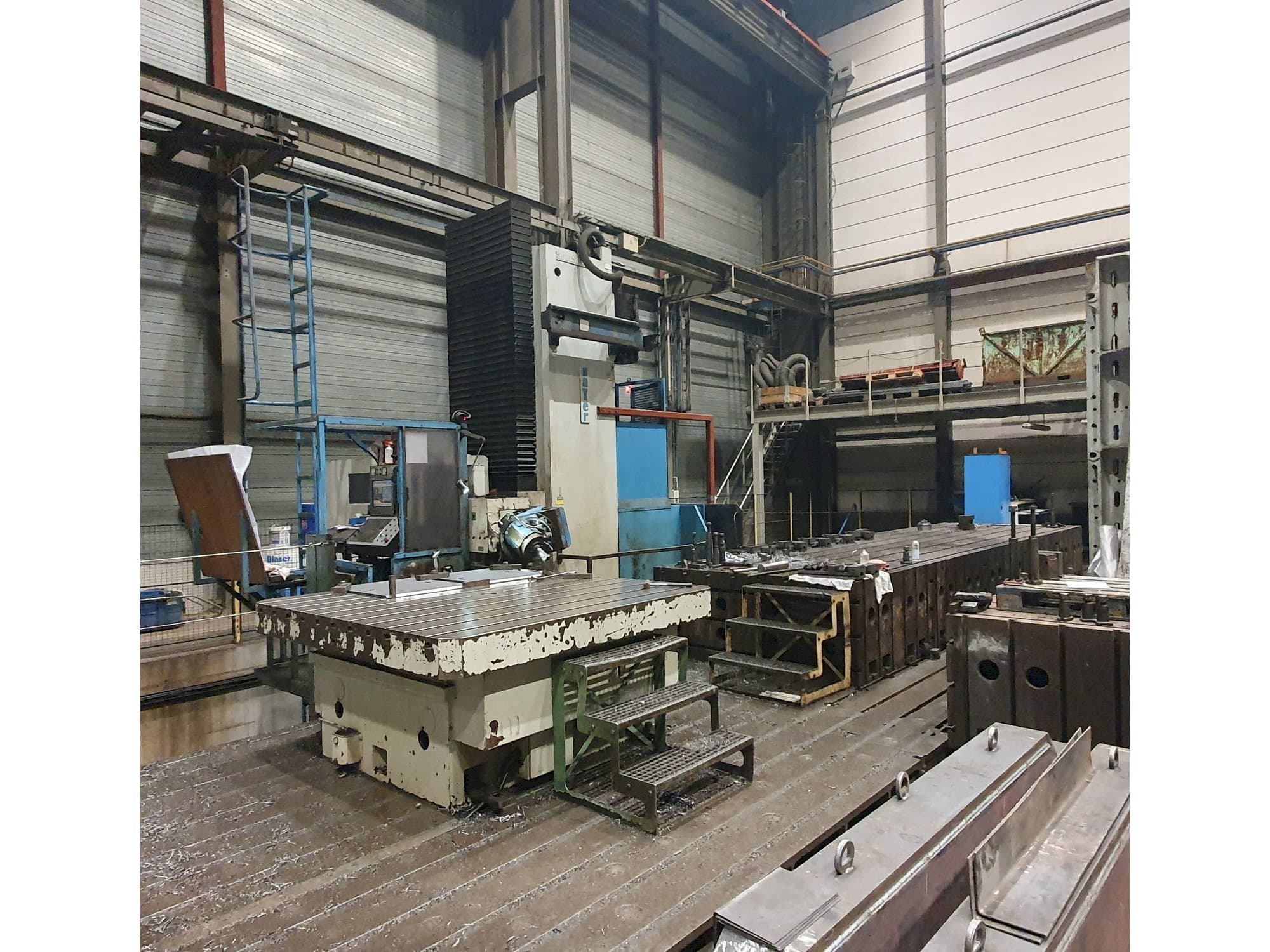

Front view of Zayer 30-KCU-12000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Zayer 30-KCU-12000

Photo Gallery

Zayer - 30-KCU-12000BE-MIL-ZAY-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Zayer 30-KCU-12000 Milling machine

This Zayer 30-KCU-12000 Milling machine was manufactured in the year 1998. It is equipped with a Siemens TNC 430 CA control unit and has 3 axis. The machine has a spindle speed of 35-3000 rpm.

Overview

brand: Zayer
year: 1998
MODEL: 30-KCU-12000
production hours: 0
application type: Milling
Location: Belgium
machine type: Gantry Milling Machine
control unit brand: SIEMENS

Technical Information - Zayer 30-KCU-12000

General Data

Machine weight: 45500 kg

Control Unit

Model: TNC 430 CA
Brand: SIEMENS

Main drive

Spindle speed range: 35-3000 1/MIN
Number of axis: 3

Table

Outer length: 14000 mm
Outer width: 3500 mm
TSlots size: 14
Distance between: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Movement in length: 12008 mm
- - Cross movement: 1507 mm
- - Vertical movement: 3008 mm
- - Tool conus: din69871 - b50
- - Tightening bolt for tool holder: 150 7388-2-b50
- - # tools in magazine holder: 100
- - Feed rate (normal): 6-5000 mm/min
- - Feed rate in length direction (rapid traverse): 10000 mm/min
- - Feed rate in cross direction (rapid traverse): 15000 mm/min
- - Feed rate in vertical direction (rapid traverse): 15000 mm/min
Qualitative Machine Benefits:
- - Positioning accuracy: +- 0,013 mm
- - Reiteration accuracy: +-0,007 mm
- - Max. Permitted torque is then 100 danm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
