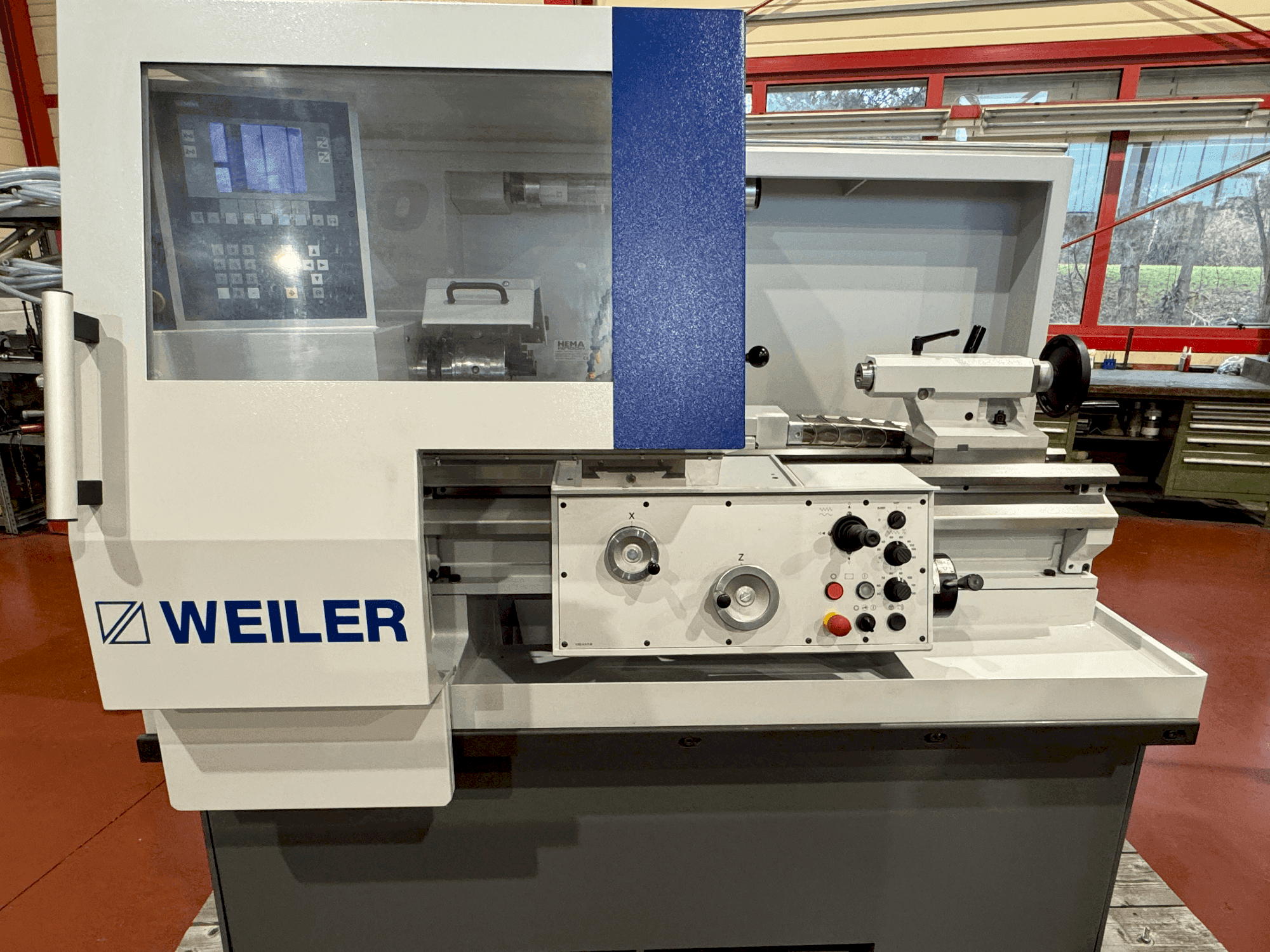

Weiler - C 30x750DE-TUR-WEI-2005-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Distance between centers: 750 mm
  • - Center height: 165 mm
  • - Swing diameter over bed: 330 mm
  • - Swing diameter over carriage: 160 mm
  • - Carriage travel: 180 mm
  • - Bed saddle guide length: 395 mm
  • - Spindle head according to din 55025, size 5
  • - Max. Torque at the spindle: 90 nm
• Qualitative Machine Benefits:
  • - Overhaul measures include hardening and grinding of all bed guideways, grinding of the tailstock guideways, overhauling entire bed and cross-slide unit, renewing sliding surface of the cross-slide, renewing or re-coating wedge rails and undergrips, replacing all wipers and belts, grinding and replacing bearings of the main spindle
  • - Renewing x-axis and z-axis including bearings, overhauling tailstock spindle and bore, replacing the main spindle motor (gear motor), checking auxiliary motors (x- and z-axis), installing current safety devices, replacing rotary, tilt, and limit switches
  • - Replacing spindle and handwheel encoders, replacing movable cables and coolant hoses, replacing central lubrication system, renewing energy chains, painting according to specifications, assembly and geometric acceptance of the machine according to din 8605
  • - The machine is equipped with a siemens 802 c control system.
  • - The customer can choose between the two tool systems: multifix size b or parat size 2
  • - The tool system is included in the price and is installed as new. The chuck is a good used one and is also included.

Extra information

• - Overhaul of the machine: 2020
