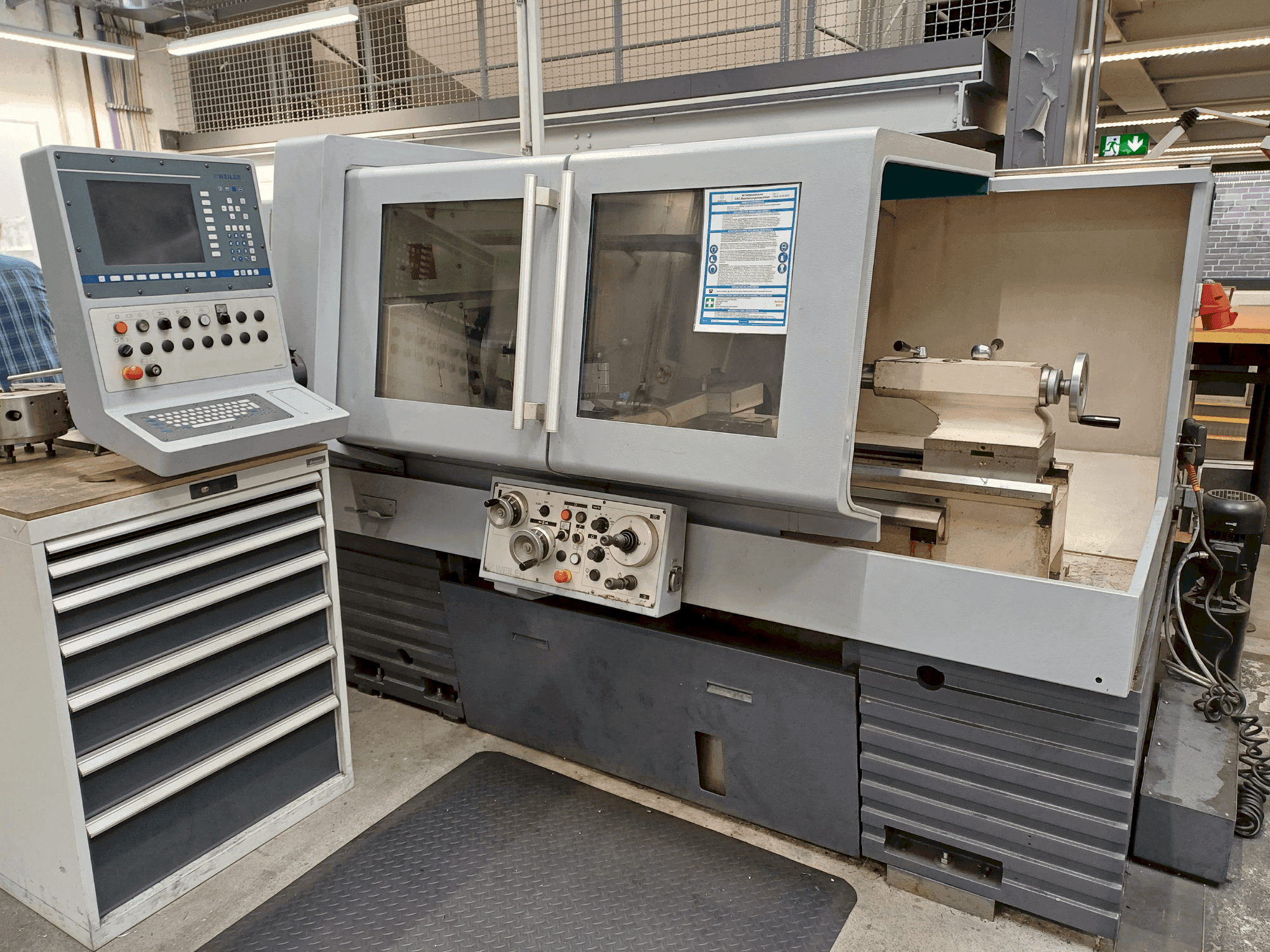

Weiler - E40DE-TUR-WEI-2009-00002

Additional Equipment

• - Fixed steady rest (clamping range: 12-150 mm)
• - Moving steady rest (clamping range: 10-160 mm)
• - Ø 400 mm Röhm faceplate
• - 29 ISO Fix tool holders

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Torque at the spindle (60% ed): 450 nm
  • - Quill diameter: 65 mm
  • - Quill stroke: 120 mm
  • - Inner taper of the quill: mk 4
  • - Metric threads: 0. 1-400 mm
  • - Inch threads: 1/4-56 g/1"
  • - Module threads: 0. 125-28 mm
  • - Dp threads: 1-224 g/"

Extra information

• - Movement Working range: Center width: 1000 mm Center height: 210 mm Swing diameter over bed: 435 mm Swing diameter over cross slide: 200 mm Bed width: 330 mm Sliding movement of cross slide: 260 mm Sliding movement of top slide: 120 mm Cross slide length: 790 mm Cross slide width: 202 mm Bed slide guide length: 540 mm Turning tool cross-section (height/width): 25 x 25 mm Feed Drive Three-phase servo drives Feed range longitudinal and planar: 0-20 mm/rev Feed force longitudinal: 8000 N Feed force planar: 5000 N Rapid traverse speed longitudinal/planar: 10 m/min / 5 m/min
