➤ Used Weiler E 60x1000 For Sale | gindumac.com

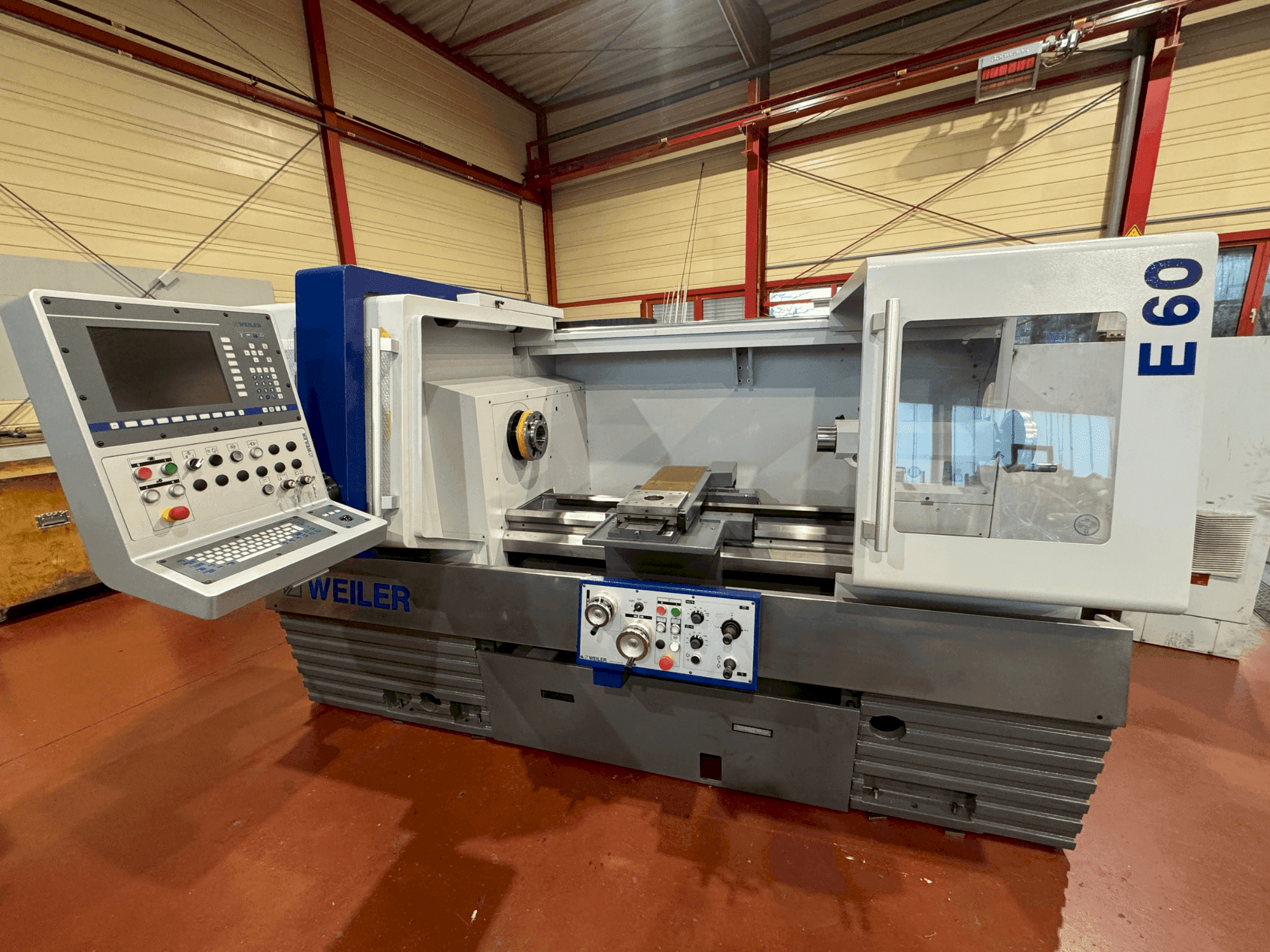

This horizontal turning machine was manufactured in 2009. A Weiler E 60x1000, it features a spindle bore of 83mm and a swing diameter over bed of 640mm. With a maximum torque of 1400Nm and a speed range up to 2500 rpm, it's ideal for robust turning operations. Recently overhauled, it includes renewed bearings and guideways, ensuring high precision. Consider the opportunity to buy this Weiler E 60x1000 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Weiler
year: 2009
MODEL: E 60x1000
production hours: 9
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Weiler E 60x1000

Additional Equipment

- Tailstock spindle diameter: 100mm / Tailstock spindle travel: 200mm / Internal taper of the tailstock spindle: Mk.5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: 1000mm /center height: 320mm / swing diameter over bed: 640mm / swing diameter over carriage: 405mm
- - Carriage travel: 380mm / bed saddle guide length: 570mm
- - Spindle head according to din 55025, size 8 / spindle bore: 83mm / internal taper of the main spindle: metric 90
- - Drive power 60% / 100% duty cycle: 20. 5/17 kw / max. Torque at the spindle: 1400nm / speed range gear stage 1: 0-800 rpm / speed range gear stage 2: 0-2500 rpm
- - Overhaul measures include hardening and grinding of bed guideways, grinding of tailstock guideways, and overhauling of bed and cross-slide unit.
- - Replaced and renewed components include sliding surfaces, wedge rails, all wipers, belts, main spindle motor, safety devices, rotary switches, and lubrication system.
- - Cycle control weiler: 840d/sl1
- - Tool holder according to customer requirements: multifix size c or parat size 3

Extra information

- Machine overhauled in 2022

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
